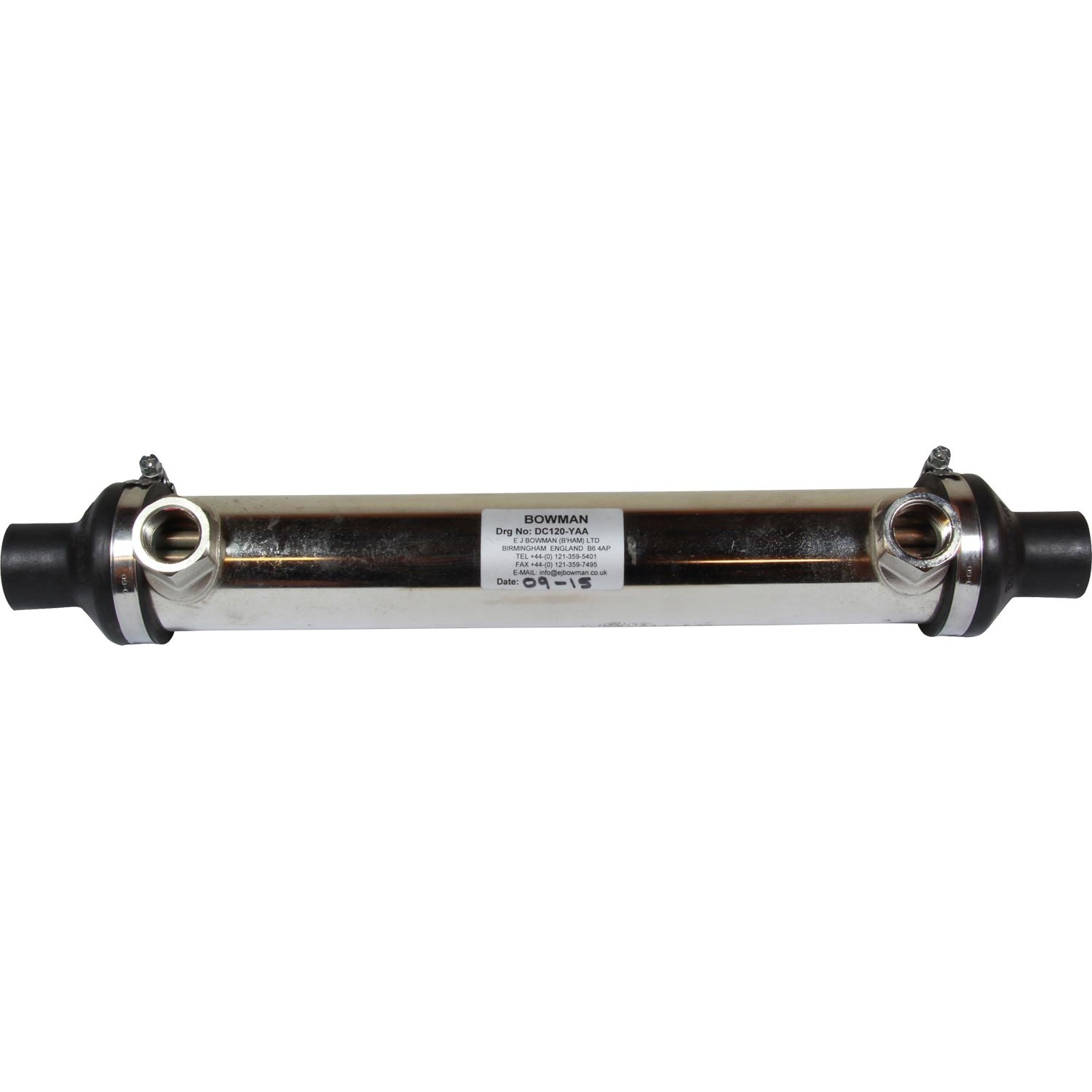

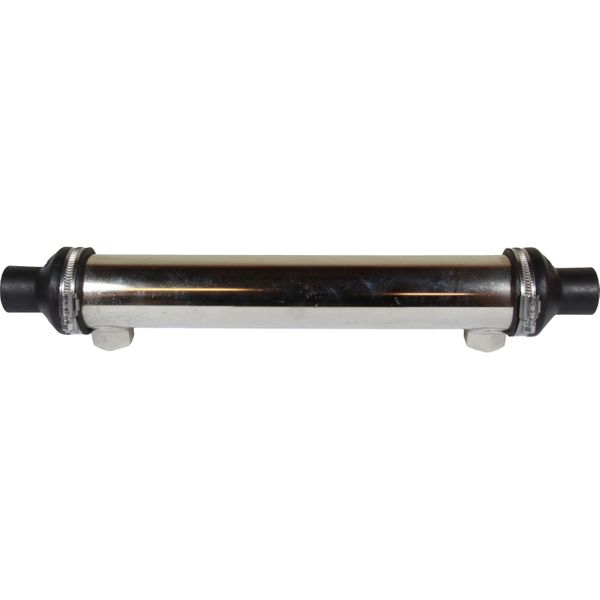

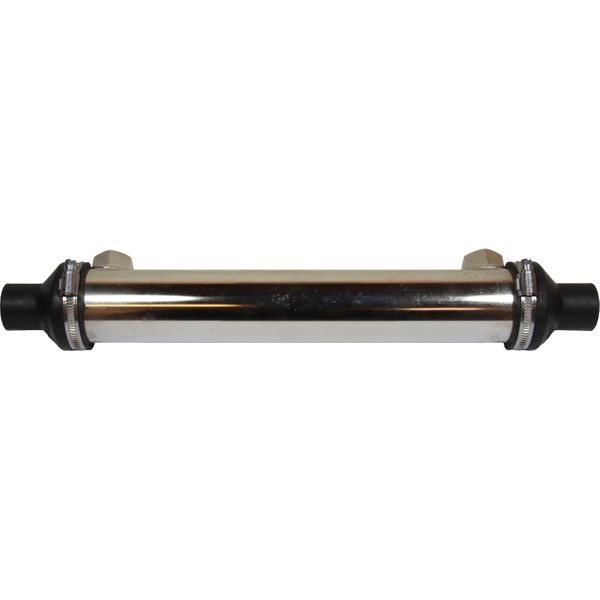

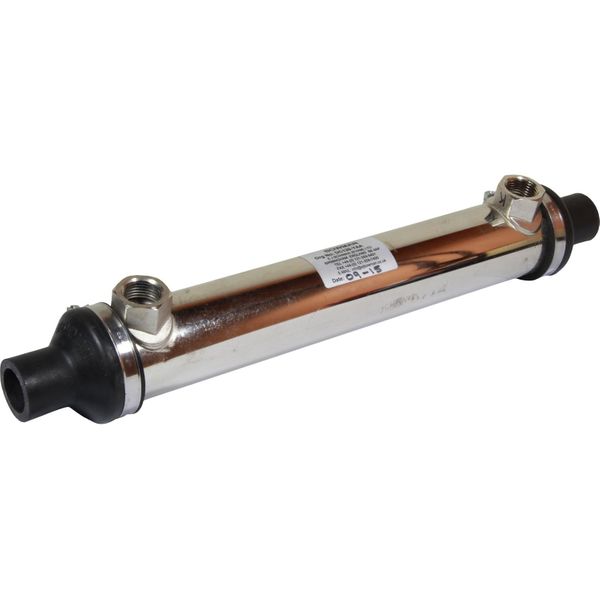

Bowman DC120-YAA

Wholesale price for Bowman DC120-YAA ,

Introducing the Bowman DC120-YAA tubular oil cooler heat exchanger, an ideal solution for your engine oil or transmission oil cooling needs. This highly efficient oil cooler is designed to enhance performance for various Ford engines, ensuring optimal functionality and longevity.

Compatible Engine Models:

• Ford FSD425T
• Ford 2613
• Ford 2614
• Ford 2615E
• Ford 2654
• Ford 2655
• Ford 2656
• Ford 2658E

Specifications:

• Length: 396 mm (including end caps), 320 mm (excluding end caps)
• Operating Temperature: Up to 125°C
• Brand: Bowman
• Country of Origin: United Kingdom
• Transmission Capacity: Supports up to 240 HP – 180 kW

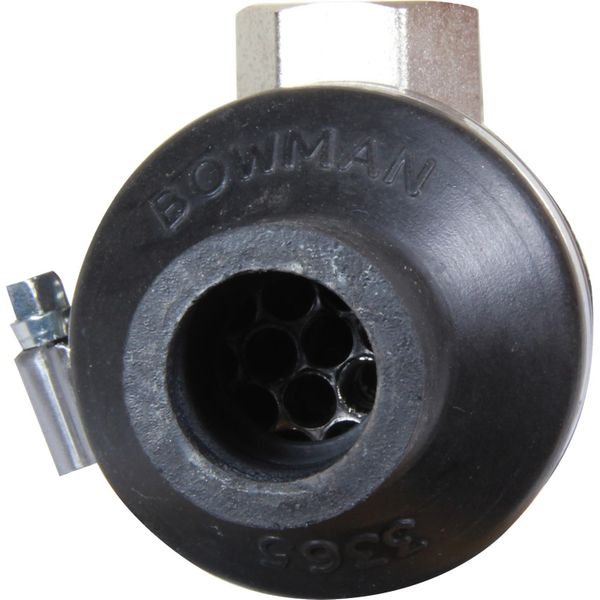

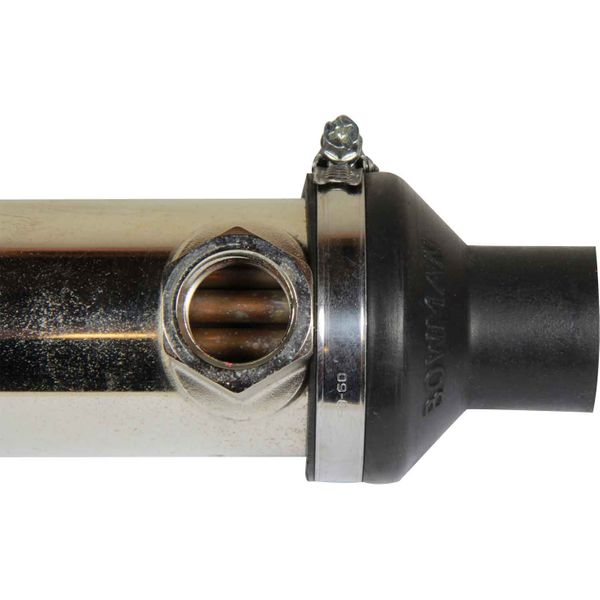

• Connections: Oil: 1/2″ BSP female, Raw Water: 22 mm through neoprene end caps (3365NP)
• Maximum Power: 107 HP (80 kW)
• Internal Oil Volume: 200 ml
• Internal Water Volume: 325 ml
• Maximum Pressure: Oil working pressure: 30 Bar; Water working pressure: 2 Bar
• Model: DC120
• Raw Water Flow Rate: Maximum 60 LPM

Designed for efficiency and reliability, the Bowman DC120-YAA not only ensures superior cooling performance but also contributes to the overall performance and efficiency of your machinery. Don’t compromise on quality; choose the Bowman DC120-YAA for unparalleled oil cooling solutions.
