Bowman DC50-XAA
€216,46
Out of stock
Wholesale price for Bowman DC50-XAA ,

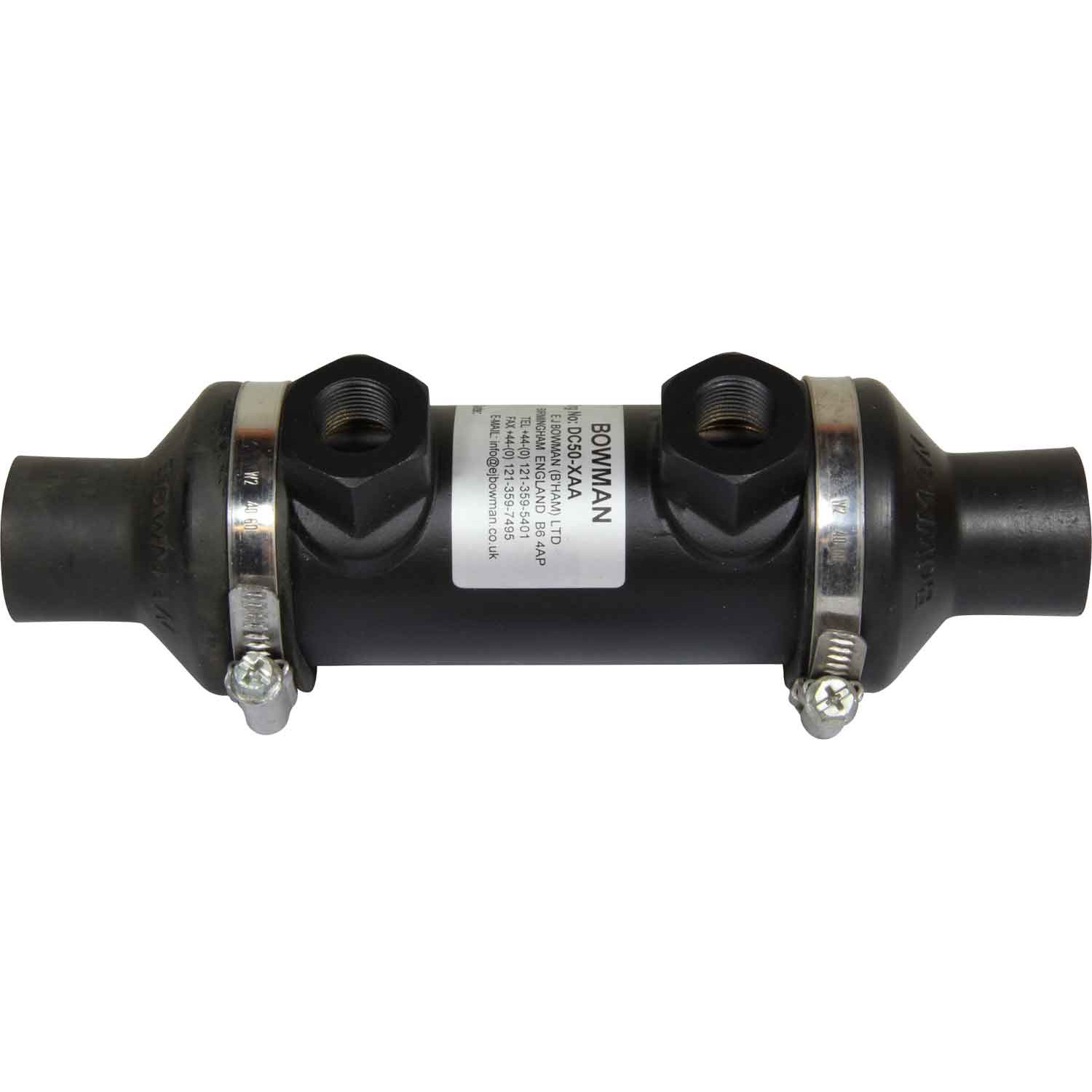

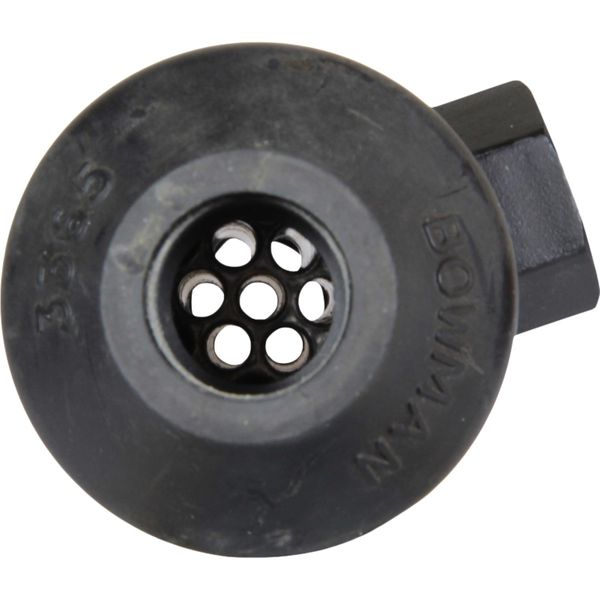

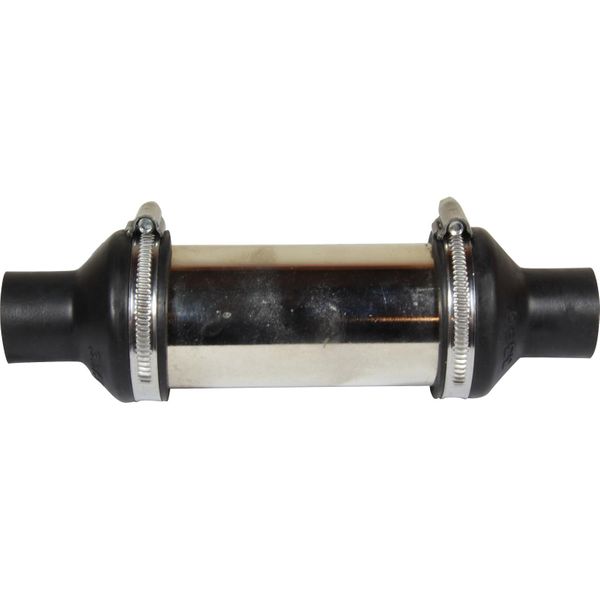

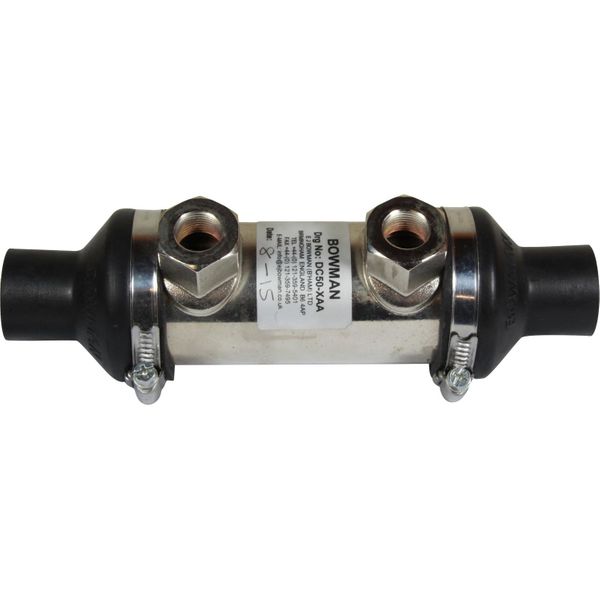

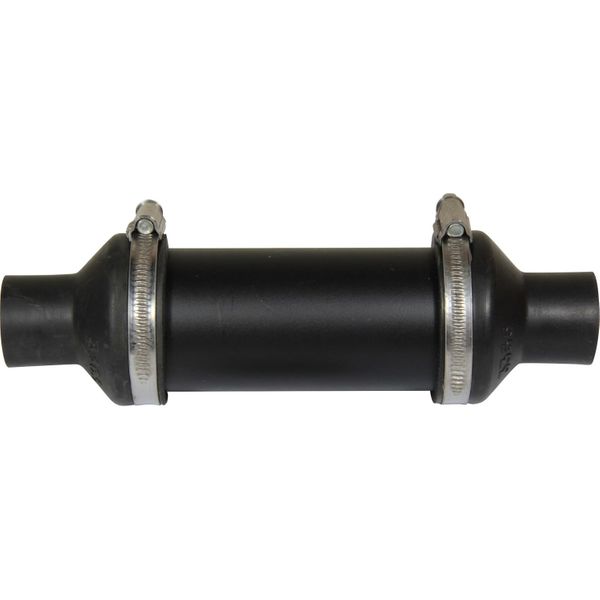

Bowman DC50-XAA Tubular Oil Heat Exchanger
The Bowman DC50-XAA tubular oil heat exchanger is expertly designed for optimal performance as an engine oil cooler or transmission oil cooler. Its robust construction and reliable functionality make it an essential component for enhancing the efficiency of your machinery.
Specifications
- Length: 210mm (including end caps), 125mm (excluding end caps)
- Operating Temperature: Maximum 125°C
- Working Pressure: Oil: Maximum 30 bar, Water: Maximum 2 bar
- Brand: Bowman
- Country of Origin: United Kingdom
- Gearboxes Supported: Up to 100HP – 75kW
- Connections: Oil: 3/8″ BSP female, Raw Water: 22mm through neoprene end caps
- Diameter: Outer Diameter: 51mm
- Maximum Horsepower: 40HP (30kW)
- Internal Oil Volume: 80ml
- Internal Water Volume: 160ml
- Maximum Pressures: Oil Working Pressure: 435 PSI (30 Bar), Water Working Pressure: 29 PSI (2 Bar)
- Model: DC50
- Max Raw Water Flow: 60 LPM
This high-quality heat exchanger is engineered to ensure the reliable cooling of engine oil and transmission fluid under demanding conditions. The Bowman DC50-XAA provides superior performance, showcasing its capability in applications that require efficient heat management.
Enhance the longevity and efficiency of your machinery with the Bowman DC50-XAA heat exchanger. Enjoy peace of mind knowing that you have a top-tier solution for your cooling needs.
| Weight | 4,80000000 kg |
|---|---|
| Dimensions | 100,00000000 × 100,00000000 × 100,00000000 cm |
