Bowman DC90-YBB

Wholesale price for Bowman DC90-YBB ,

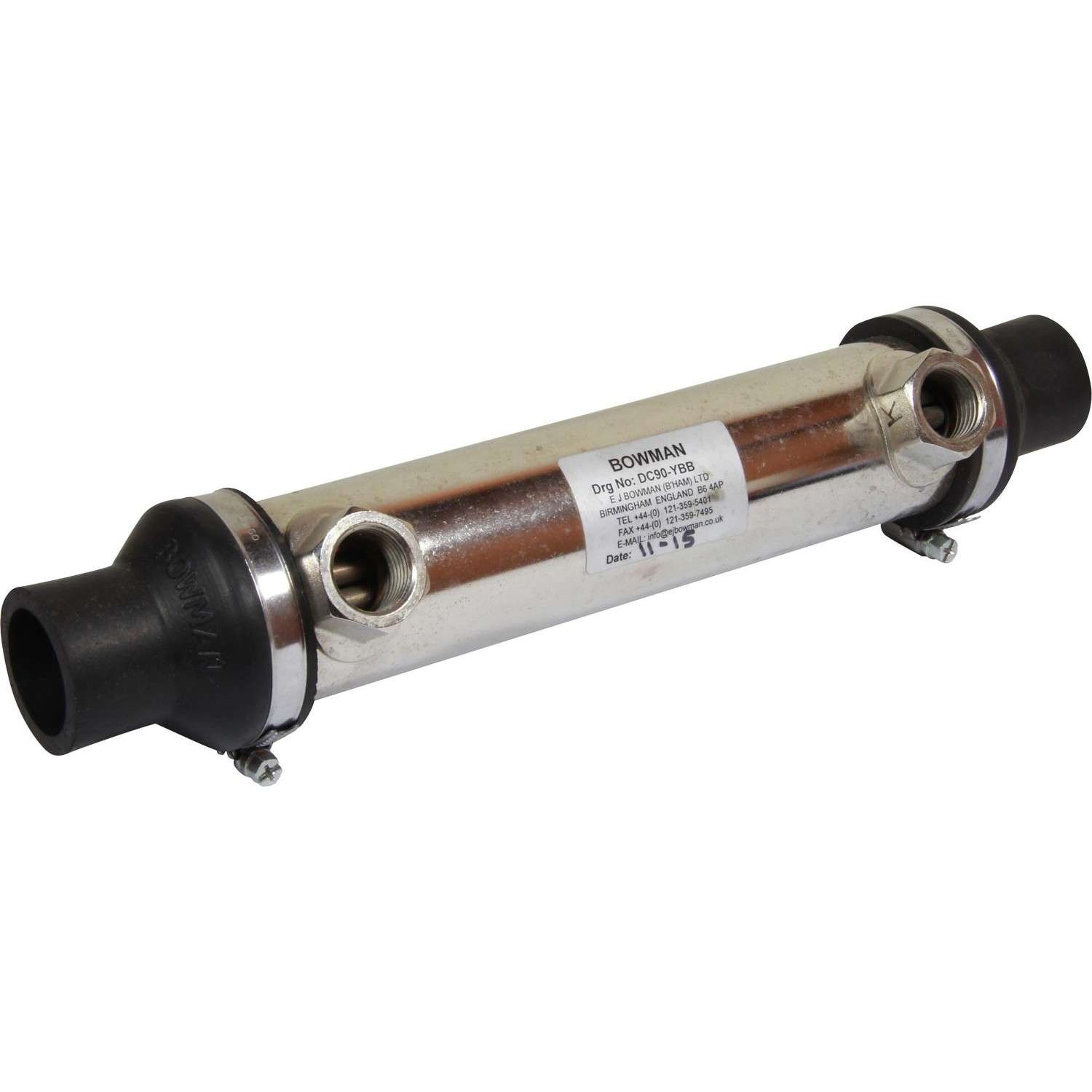

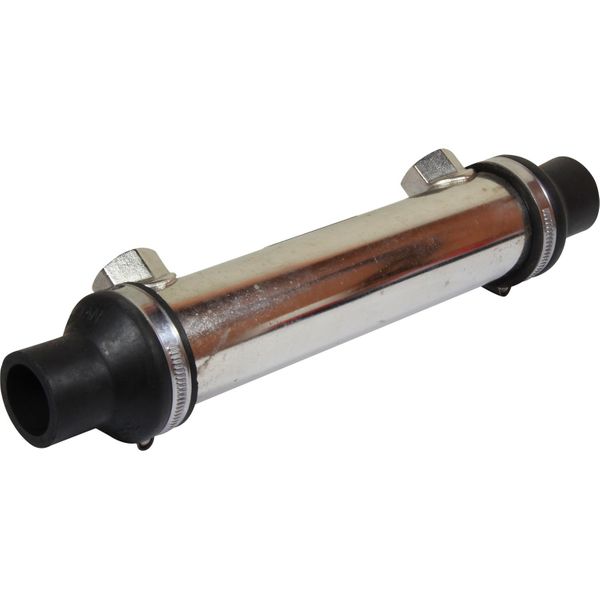

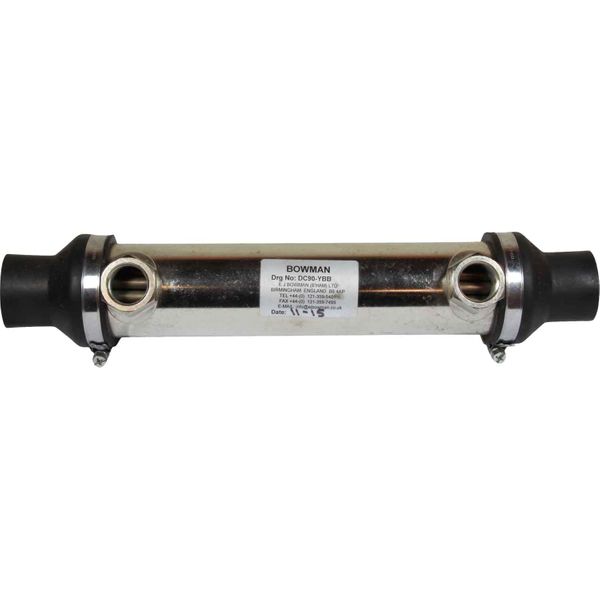

Bowman DC90-YBB Tubular Heat Exchanger

The Bowman DC90-YBB tubular heat exchanger is expertly designed to serve as both an engine oil cooler and a gearbox oil cooler, making it an essential component for maintaining optimal operating temperatures in various applications.

Key Features & Benefits:

• Efficient Cooling: Effectively reduces oil temperatures, ensuring smooth engine and gearbox performance.
• Robust Design: Built with high-quality materials for durability and longevity in demanding environments.
• Compact Dimensions: Measures 314 mm in length (including end caps) and 235 mm without, making it ideal for tight installation spaces.
• High-Temperature Resistance: Operates efficiently at temperatures up to 125 °C, suitable for high-performance applications.
• UK Quality Assurance: Manufactured by Bowman, a trusted brand from the United Kingdom, renowned for its engineering excellence.

Technical Specifications:

• Power Transmission Capability: Suitable for gear transmissions up to 200 HP (150 kW).

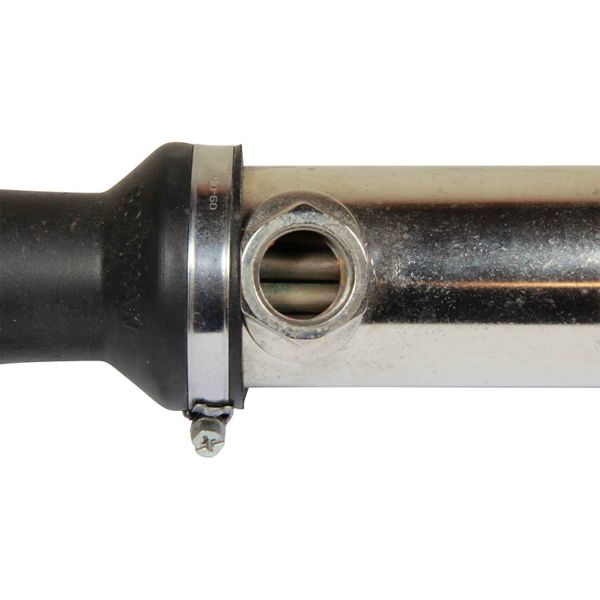

• Oil Connections: 1/2″ BSP female connection for easy integration.

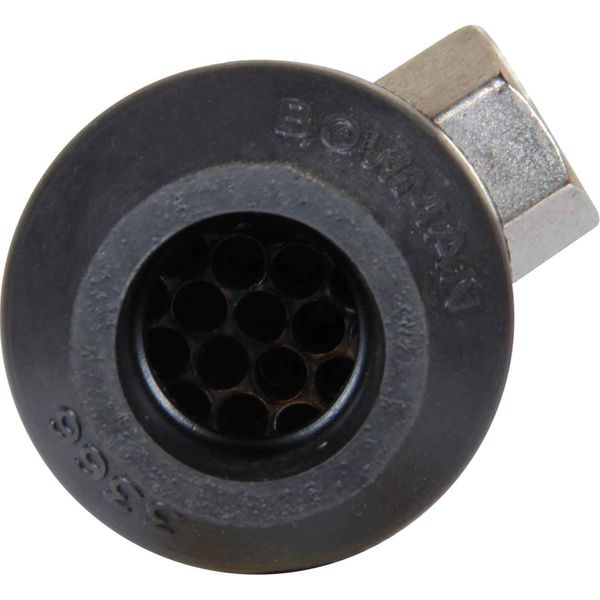

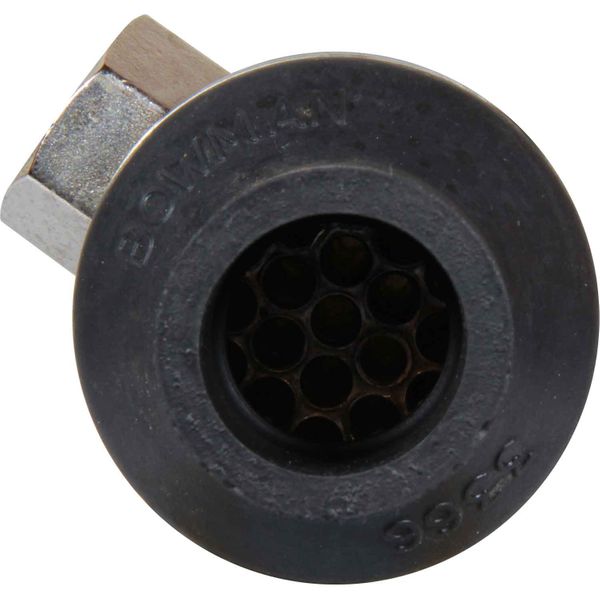

• Raw Water Connections: 28 mm through neoprene end caps, ensuring secure fittings.
• Maximum Internal Oil Volume: 160 ml, providing sufficient capacity for optimal heat exchange.
• Maximum Internal Water Volume: 240 ml for effective cooling performance.
• Maximum Pressure Ratings: 30 Bar for oil and 2 Bar for water, ensuring safe and reliable operation.
• Model: DC90, engineered for high-efficiency heat transfer.
• Raw Water Flow Rate: Maximum of 60 LPM, allowing for excellent cooling efficiency.

Elevate your cooling system with the Bowman DC90-YBB tubular heat exchanger. Ensure reliable performance and protect your engine or gearbox from overheating. Invest in quality and efficiency for enhanced operational success.
