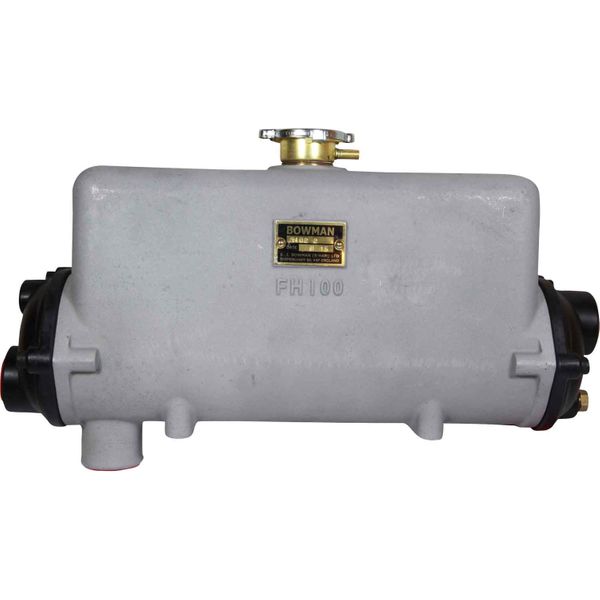

Bowman FH100-3182-2

Wholesale price for Bowman FH100-3182-2 ,

The Bowman FH100-3182-2 heat exchanger with a three-pass marine header tank is expertly designed for engines producing 82 kW or 110 HP. This heat exchanger is compatible with various engine models, including the Ford BSD-329/32/3/H, Ford BSD-442/4, and Gardner 4LW, among others.

It features a 1″ BSP raw water inlet connection on one side and a 1″ BSP raw water outlet connection on the opposite side. Additionally, it includes a 45 mm connection for fresh water.

Bowman advises against the use of zinc anodes, as the heat exchanger tubes are constructed from a copper-nickel alloy, which does not require them. Installing a zinc anode could damage the naturally occurring protective copper oxide layer on the tubes, leaving the material susceptible to deterioration.

Key Benefits:

• Optimal Performance: Designed for efficient thermal transfer, ensuring your engine operates smoothly.
• Durable Construction: Made with high-quality copper-nickel alloy for superior corrosion resistance.
• Wide Compatibility: Suitable for numerous engine models, making it a versatile choice.

Technical Specifications:

• Power Rating: 82 kW / 110 HP
• Inlet Connection: 1″ BSP
• Outlet Connection: 1″ BSP
• Fresh Water Connection: 45 mm

Experience exceptional reliability and performance with the Bowman FH100-3182-2 heat exchanger. Upgrade your engine’s cooling system today and ensure optimal operational efficiency!
