Capstan Quick Totem G TMG 800W 24v

Wholesale price for Capstan Quick Totem G TMG 800W 24v ,

The Quick TMG Totem G 1100 horizontal winch is an excellent choice for small auxiliary boats. Its robust AISI 316 stainless steel base ensures durability and resistance to harsh weather conditions.

This winch features an anodized aluminum epicyclic gearbox that enhances efficiency by more than 40% compared to traditional gearboxes.

Equipped with an 80 mm (3-5/32″) drum roller, it is ideal for towing straps and ropes. The chrome-plated bronze base and anodized aluminum drum further increase its strength.

Additionally, the waterproof motor with IP67 rating, combined with the epicyclic gearbox, guarantees reliable performance in various conditions.

The package includes a control box and handle for easy operation.

Specifications:

• Main Construction: Stainless Steel
• Brand: Quick
• Series: Totem G TMG
• Model: 1100
• Voltage: 24V DC
• Power: 800W
• Working Load: 95kg (209.4 lb); Maximum: 290kg (639.3 lb)
• Maximum Pulling Load: 820kg (1807.8 lb)
• Maximum Chain Speed: 25.8 m/min (84.6 ft/min); At Working Load: 16.8 m/min (55.1 ft/min)
• Amperage: 40A at 95kg
• Fuse: 40A Circuit Protection Switch
• Contents: Winch, Handle, Contact Unit, Screws and Pillars, Drilling Template, User Manual
• Approval: CE

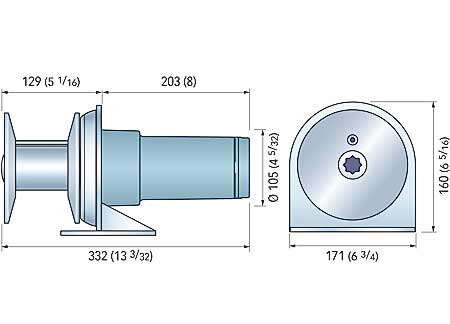

Dimensions:

• Height: 160mm (6-5/16″)
• Total Width: 332mm (13-3/32″)
• Drum Side Width: 129mm (5-1/16″)
• No Drum Side Width: 203mm (8″)
• Depth: 171mm (6-3/4″)
• Drum Diameter: 80mm (3-5/32″)
• Mounting Holes: 4x 9mm (23/64″)
• Cover Thickness: 20 – 40mm (25/32″ – 1-9/16″)
• Mounting Plate Dimensions: 160mm x 125mm (6-5/16″ x 4-15/16″)
• Distance Between Mounting Holes: 120mm x 85mm (4-23/32″ x 3-11/32″)
• Motor Cable Size: 10mm² (AWG7)

This winch combines quality construction with advanced technology, making it a reliable addition to your boating equipment.
