Capstan Quick Totem TM3 800W 24v

Wholesale price for Capstan Quick Totem TM3 800W 24v ,

We are pleased to present the Capstan Totem TM3 1000 24v, featuring a robust anodized aluminum base complemented by a chrome-plated bronze drum.

This model is equipped with a hermetically sealed motor rated IP67, allowing for easy vertical installation. For your convenience, it also includes a control box and a handle.

Both the base and the drum are constructed from AISI 316 stainless steel, ensuring durability and corrosion resistance. The gearbox is made from anodized aluminum, while the motor is designed to be hermetic, enhancing its reliability.

Specifications

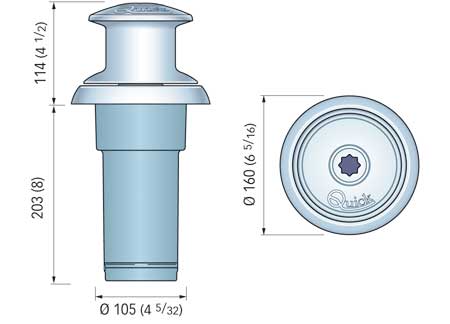

The specifications of the Totem TM3 1000 include a drum diameter of 80 mm, making it ideal for vessels ranging from 11 to 14 meters (36 to 46 feet) in length.

• Drum diameter: 80 mm
• Motor power: 800 W
• Input voltage: 24 V
• Maximum tension: 820 kg
• Maximum working load: 290 kg
• Working load: 95 kg
• Chain speed under working load: 16.8 m/min
• Current draw under working load: 80 A
• Cover thickness: 20-40 mm
• Weight: 8.1 kg

This capstan is expertly designed to meet the needs of sailing enthusiasts, providing both power and reliability for your maritime activities.
