Freshwater pressure system CEM MG-INOX/20X 90lt/m 24v

Wholesale price for Freshwater pressure system CEM MG-INOX/20X 90lt/m 24v ,

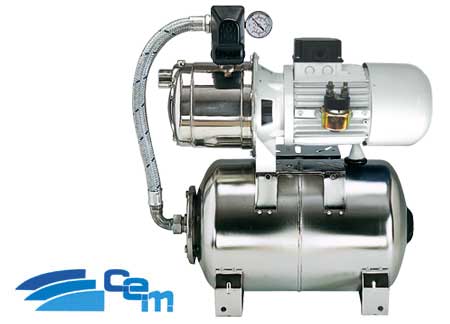

MG-INOX/20X Fresh Water Pressure System

The MG-INOX/20X fresh water pressure system is specifically designed for vessels ranging from 18 to 35 meters. This system features a stainless steel accumulator tank, a stainless steel pump, and a Noryl technopolymer impeller, ensuring both durability and reliability.

Widely utilized in the marine sector, this system provides consistent and adequate water pressure for various onboard appliances, including showers, sinks, and toilets.

Recommendations for Optimal Performance

• Install a check valve on the suction inlet.
• If the unit has not been used for an extended period, ensure that the internal tank pressure is equal to or below 0.2 bar before operation, in accordance with the minimum pressure setting of the pressure switch.

Construction Features

Our water pressure systems typically include:

• An electric pump from the J-mini, J-INOX, MG-INOX, or JBR series (voltage and performance specifications detailed in the enclosed table).
• A cylindrical tank with a capacity of 20 liters, available in stainless steel (20X) or painted steel with a stainless steel flange (20L), featuring an internal butyl diaphragm suitable for food usage.
• A pressure switch with a standard adjustment range of 1.4 – 2.8, adjustable to the recommended values in the table.
• A pressure gauge.
• A 5-way brass piping fitting.
• A flexible hose measuring 500 mm.

Usage Field

Designed for liquids free of solid impurities.

Liquid temperature range: +0 to +50 °C.

Maximum static pressure within the pump body: 6 bar.

Available Accessories Upon Request

• Check valves in sizes of 1” or 1” 1/2.
• Manual reset safety pressure switch “SQUARE D”: This system provides a significant advantage over standard pressure switches by stopping the fresh water pressure system when no water is available, thus preventing the unit from running dry.
