Hydraulic Pump Ultraflex UP28F-SVS

Wholesale price for Hydraulic Pump Ultraflex UP28F-SVS ,

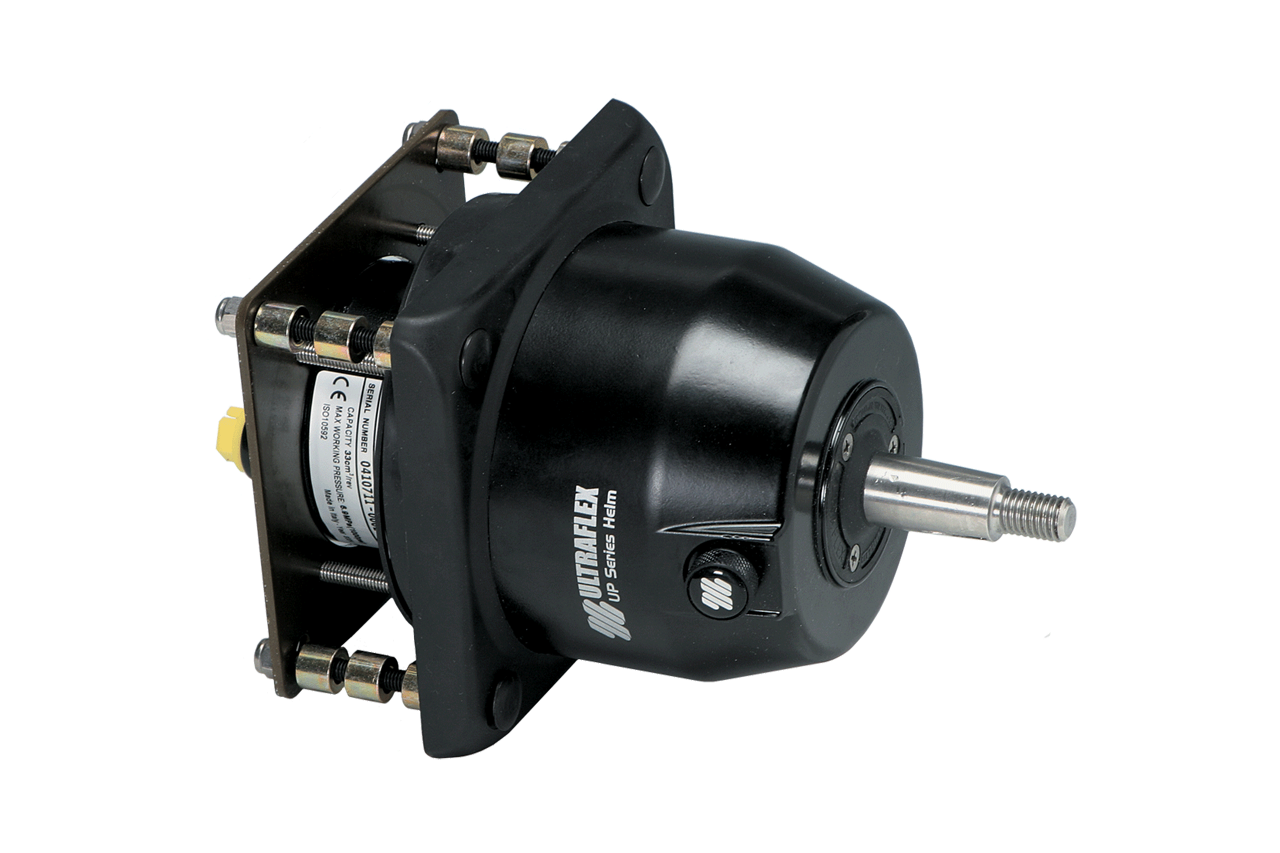

UP28F – SVS – Front Mount Steering Wheel for Ultraflex’s SilverSteer Hydraulic Steering System

Designed for outboard motors of up to 350 HP, this hydraulic steering system features a built-in check valve to ensure reliable performance.

Key Features:

• Type: UP28 FSVS
• Mounting: Front
• Displacement (cc/rev): 28
• Number of Pistons: 5
• Pressure (bar): 105
• Maximum Steering Wheel Diameter (mm): 710

This steering wheel incorporates a locking valve that secures it in position and a relief valve to prevent overpressure conditions. Built with a ¾” stainless steel conical shaft, it enhances durability and longevity.

Additional Features:

• The locking valve and shaft seal are easily accessible for simple replacement.
• Includes 90° adjustable connections compatible with 3/8” hoses.
• Equipped with a ball bearing piston track for smooth operation.
• Constructed with a cast iron rotor for increased durability and extended lifespan.
• Compatible with square flange X64 and round flange X57, enabling installation in an intermediary dash location.
• The tilt mechanism offers a range of 60° with five locking positions for enhanced user convenience.

Specifications:

• Mounting: Front Mount
• Displacement per Revolution: 28 cc (1.7 cu.in)
• Number of Pistons: 5
• Relief Valve Adjustment: 70 Bar (1000 PSI)
• Maximum Steering Wheel Diameter: 710 mm (28”)
• Weight: 5 kg (11 lbs)

Upgrade your boat’s steering system with the Ultraflex SilverSteer UP28F, ensuring safe and smooth navigation on the water.
