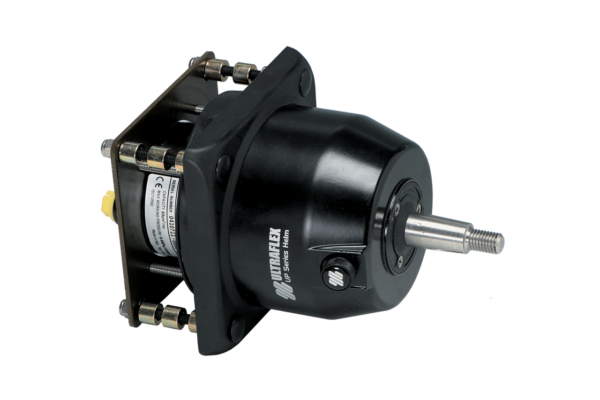

Hydraulic Pump Ultraflex UP33F-SVS

Wholesale price for Hydraulic Pump Ultraflex UP33F-SVS ,

Hydraulic Steering Helm UP33F-SVS 42475 N – 1500 PSI, 2.0 CU IN

Designed for high-performance and high-torque applications, the SilverSteer™ hydraulic steering helm ensures exceptional durability and minimal lost motion. Whether you own a bass boat, a flat-bottom vessel, or a tournament-style offshore fishing craft, the SilverSteer™ provides smooth, responsive, and precise steering.

Key Features:

• Integrated locking valve for secure helm locking.
• Comprehensive relief valve to prevent overpressurization.
• Built with a 3/4″ stainless steel tapered shaft for enhanced strength.
• Accessible locking valve and shaft seal for easy replacement.
• Adjustable 90° connections suitable for 3/8” hose.
• Equipped with a ball bearing piston track for smooth operation.
• Constructed from cast iron rotor for increased durability and extended lifespan.
• Compatible with square flange X64 or round flange X57 for mid-mount dash installations.
• Tilt mechanism: X72 tilt range of 60° with five locking positions.

Specifications:

• Mounting Type: Front Mount
• Displacement per Revolution: 33 cc – 2.0 cu in
• Number of Pistons: 7
• Relief Valve Adjustment: 70 Bar – 1000 PSI
• Maximum Wheel Diameter: 710 mm (28”)
• Weight: 5 kg (11 lbs)

The adjustable shaft-type connections facilitate precise hose routing, minimizing the risks of connector breakage due to over-tightening or leaks from loosening during installation—issues frequently encountered with competing cylinders. Experience unparalleled steering control and reliability with the SilverSteer™ helm, engineered for marine professionals and boating enthusiasts alike.
