Wholesale price for Johnson 10-13027-99 ,

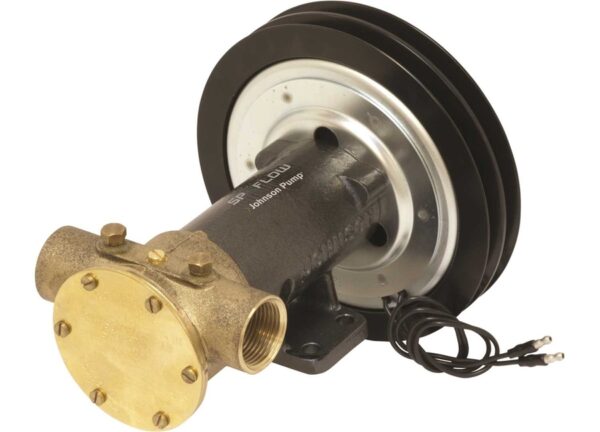

Johnson F9B-5600 Pump, Reference SPX 10-13027-99
The Johnson F9B-5600 pump features an electromagnetic clutch designed for high-load applications. This innovative clutch allows operation at the push of a button, even from a distance. When combined with a vacuum switch—recommended for bilge pump use—the clutch automatically disengages if the pump begins to draw air. This crucial feature prevents dry running, protecting the pump from potential damage.
Model Specifications:
- FxB-5xxx Series: This model refers to a flexible impeller pump with a durable bronze body. The ‘5’ indicates it is pedestal-mounted, equipped with double ball bearings and a mechanical seal, and operated by a magnetic clutch.
Product Variants:
- TSS: Space Saver model, designed with horizontal flanges for optimal space saving.
- VF: Vertical Flange model.
Our automatic control pumps are available in sizes ranging from 1″ to 2½” (20 L/min to 625 L/min) and come with clutches in 12 or 24 volts. Wear parts are easily replaceable, and service kits are available for all standard models. A vacuum switch can be purchased separately as an accessory. Please note that the clutch must be ordered separately.
The Johnson 10-13027-99 pump, featuring a clutch and made from bronze, is ideal for deck and bilge cleaning applications. It includes a neoprene impeller, a mechanical seal, and self-priming capabilities. This pump is equipped with 2″ BSP connections and offers a flow rate of 376 liters per minute (at 2000 rpm).
Pump Dimensions:
- Height: 157 mm
- Length: 290 mm
- Width: 192 mm
Compatible with 12V and 24V electrical systems.
Specifications:
- Pump Body: Bronze
- Connection for Vacuum Switch: Yes
- Shaft: Stainless steel with permanently lubricated double ball bearings
- Seal: Mechanical seal
- Cam: Full or partial comb
- Connection: 2″ BSP
- Clutch: Electromagnetic 12/24 V DC
- Pulley: 2xA or 1xB groove
- Pulley Diameter: 178 mm / 7″
- Impeller: 09-802B (09-814B*)
- Weight: 13.2 kg – 27 lbs
Dimensions:
- Length: 290 mm – 11.4″
- Height: 192 mm – 7.56″
- Width: 157 mm – 6.18″
