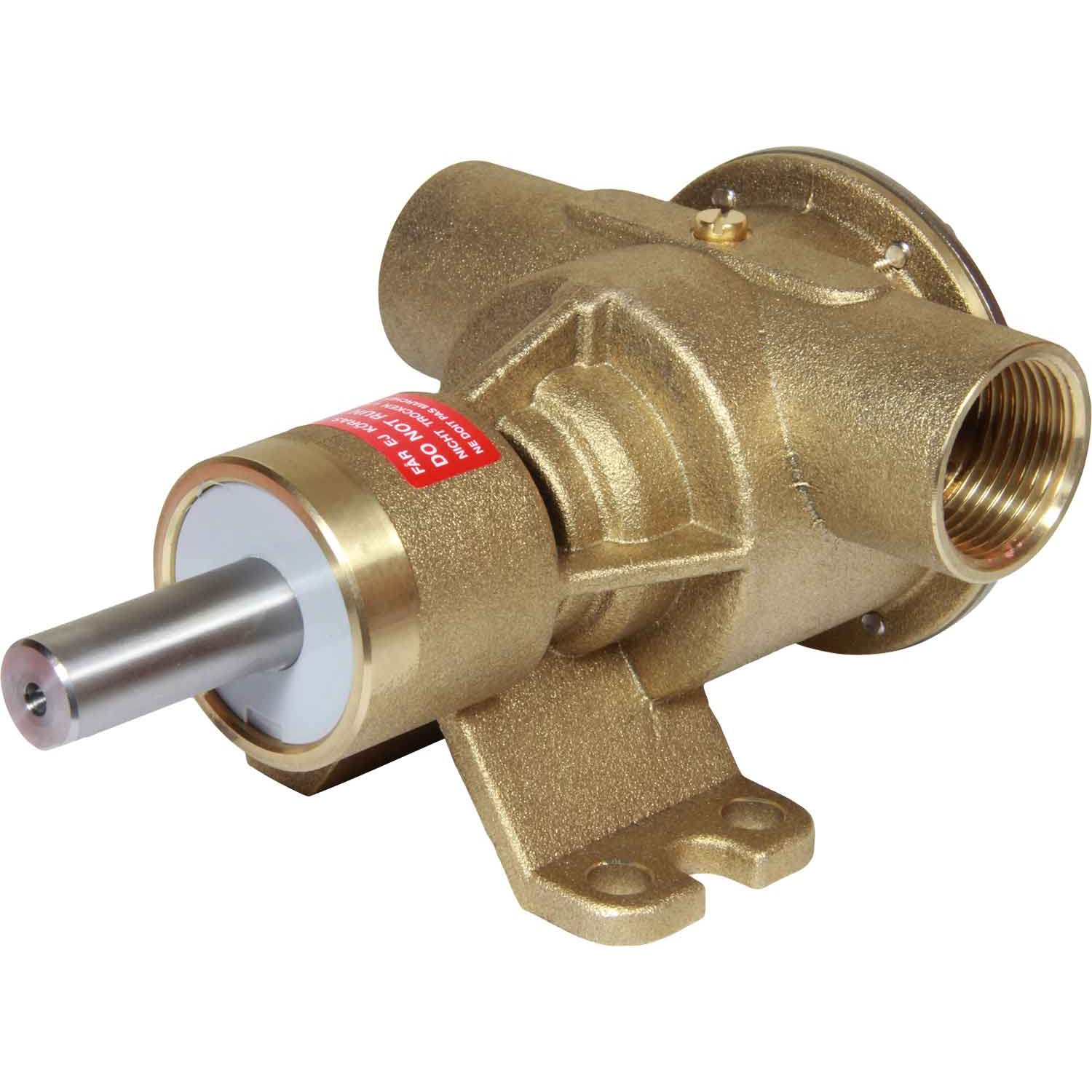

Johnson F7B Foot Mounted Engine Cooling Pump (1″ BSP / 17mm Shaft)
€419,30
In stock
DeliveryEurope-wide delivery
Warranty2 year warranty on selected products
Wholesale price for Johnson F7B Foot Mounted Engine Cooling Pump (1″ BSP / 17mm Shaft) ,
Marine Engine Cooling Pump with Flexible Impeller by Johnson
Introducing the Johnson F7B cooling pump, designed specifically for marine engines. This efficient pump features a flexible impeller and operates via a pulley system, ensuring reliable performance even in demanding conditions.
Key Benefits:
- Superior cooling efficiency to maintain optimal engine temperatures.
- Durable design with quality components for long-lasting performance.
- Easy installation with a pedestal mounting system and a standard 17 mm shaft.
Replacement Parts for Johnson F7B (Part Number: 10-24572-01):
| Position | Part | Part Number | Quantity |
|---|---|---|---|
| 1 | Body | 01-24574-3 | 1 |
| 2 | Shaft | 01-46744 | 1 |
| 3 | End Cap | 01-46648-3 | 1 |
| 4 | Impeller | 08-1028B | 1 |
| 5 | Cam | 01-42679 | 1 |
| 6 | Pin | 01-42400 | 1 |
| 7 | Wear Plate | 01-46798-2 | 1 |
| 8 | Washer | 01-45680 | 1 |
| 9 | Plate | 01-45047 | 1 |
| 10 | Spacer | 01-46009 | 1 |
| 11 | Screw | 0.0279.301 | 6 |
| 12 | Screw | 01-46794-01 | 1 |
| 13 | O-Ring | 0.2172.012 | 1 |
| 14 | O-Ring | 0.2173.402 | 1 |
| 15 | Ball Bearing | 0.3437.742 | 2 |
| 16 | Mechanical Seal | 0.2247.022 | 1 |
| 17 | Retaining Ring | 0.0371.040 | 1 |
| 18 | External Clip | 0.0370.017 | 1 |
| 19 | External Clip | 0.0370.516 | 1 |
| 20 | Label | 01-46797 | 1 |

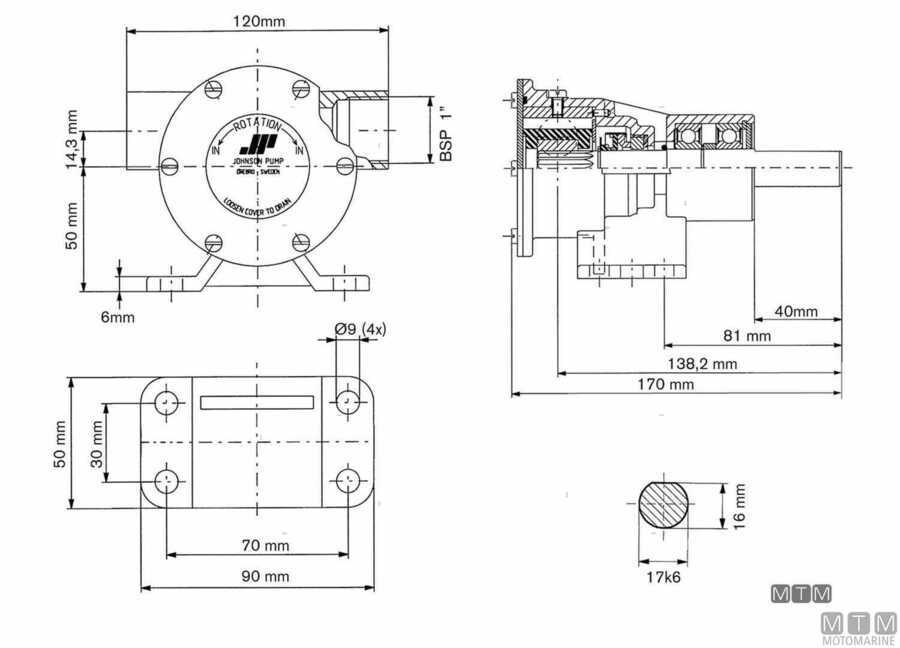

Specifications:
- Flow Rate: 107 LPM at 2000 RPM
- Height: 93 mm (3.7″)
- Length: 170 mm
- Series: F7B-8
- Width: 120 mm
- Brand: Johnson
- Shaft Diameter: 17 mm
- Drive Type: Pulley Driven
- Installed Impeller: JP-09-1028B
- Model: 10-24572-01
- Mounting: Pedestal Mount
- Inlet/Outlet: 1″ BSP Female
Upgrade your marine engine’s performance with the Johnson F7B cooling pump, where quality meets reliability.
| Weight | 4,80000000 kg |
|---|---|
| Dimensions | 100,00000000 × 100,00000000 × 100,00000000 cm |
