Raymarine EV-100 Tiller

Wholesale price for Raymarine EV-100 Tiller ,

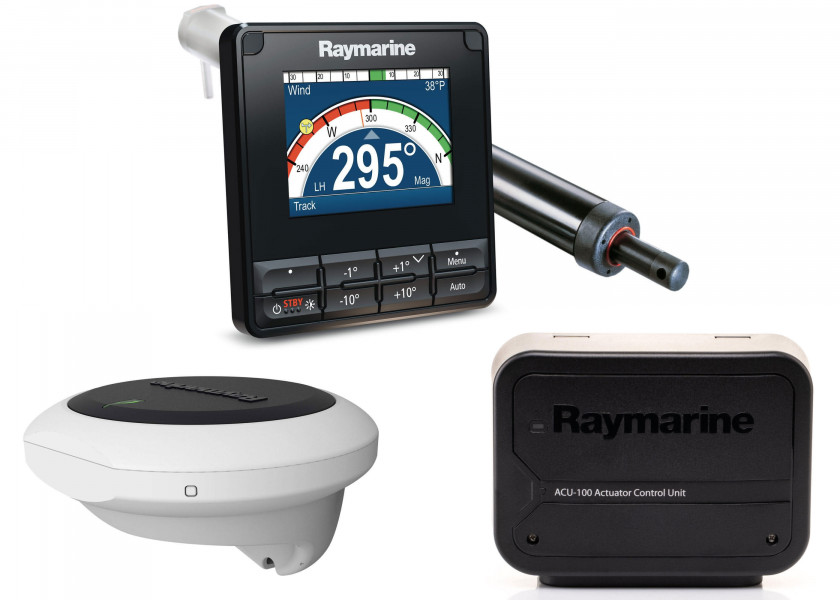

Raymarine Evolution EV-100 Tiller Autopilot System is an advanced autopilot system specifically designed for small sailboats with a tiller and a maximum displacement of up to 6,000 kg. This comprehensive package includes the ACU-100 course computer, the p70s control unit, and a compact tiller actuator. Equipped with cutting-edge technology, the system quickly detects environmental parameters and calculates optimal configurations, ensuring superior performance.

With the EV-100, you can expect precise and reliable course maintenance, regardless of your boat’s speed or sea conditions. The system eliminates the need for complicated learning processes and compass calibration, featuring automatic calibration and a 9-axis monitoring system that tracks heading, roll, and pitch of the vessel.

For added convenience, an optional S100 wireless remote control is available, which includes a base station receiver and connects to the autopilot via the Seatalk1 to NMEA 2000 converter.

Key Features:

• Complete autopilot solution in a single package
• Evolution Ai technology for improved performance
• No calibration required
• Quick and easy installation
• Compact and discreet tiller actuator
• Trusted by the world’s top solo sailors
• Suitable for tiller-equipped vessels up to 6,000 kg (13,200 lbs)
• Compatible with 12V DC power systems
• Includes p70s Autopilot Controller

Package Contents:

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Tiller Actuator
• Tiller Pin (available in packs of 5)
• Mounting Socket (available in packs of 5)
• Evolution Wiring Kit
• EV Unit O-Ring Seal Kit (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

The intelligent EV sensor core is the heart of every Evolution system. It is a 9-axis sensor that monitors the boat’s movement in three dimensions. This innovative core integrates advanced solid-state sensors with the Evolution autopilot processor in one easy-to-install unit.

The EV sensor core can be mounted above or below deck and features a robust, completely sealed housing that meets IPX6 and IPX7 immersion standards. Designed for use with Evolution mechanical and hydraulic autopilot systems, the EV-1 utilizes the SeaTalkng network, allowing a single cable connection for both power and data to the Evolution ACU and extended SeaTalkng and NMEA 2000 networks.

Key Features:

• Precise monitoring of heading, pitch, roll, and yaw, allowing the autopilot to instantly adapt to sea conditions and boat dynamics
• Flexible installation options suitable for above or below deck mounting
• Simplified SeaTalkng connectivity to the control unit and ACU
• Solid-state sensor technology provides dynamic accuracy within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

p70 Autopilot Control Head

The p70 is an easy-to-use button controller, primarily designed for sailboats.

Key Features:

• LightHouse user interface is intuitive and quick to navigate
• Wide 160° viewing angles for better visibility
• A setup assistant simplifies pilot configuration
• Anti-reflective coating enhances visibility in bright sunlight
• Low power consumption—typically 132mA/1.6W, which is 27% less than the ST70 at four times the measured brightness
• Supports multiple autopilot modes: Auto, Standby, Pattern, Track, Wind, Power Steering, and Tiller Steering
• Simple dimming/illumination of the system and group
• Compatibility with multiple data sources
• SeaTalkng/NMEA 2000 and SeaTalk1 connectivity (no need for bridges)

ACU-100 Autopilot Control Unit (ACU)

The robust ACU (Actuator Control Unit) provides reliable power for the autopilot and supplies energy to the SeaTalkng bus. Choose the ACU that best fits your steering system type.

The Evolution Wiring Kit Includes:

• 1 x SeaTalkng Power Cable (0.4m)
• 1 x SeaTalkng Main Cable (5m)
• 1 x SeaTalkng Spur Cable (0.4m)
• 1 x 5-Way SeaTalkng Connector Block
• 2 x SeaTalkng T-connectors
• 2 x SeaTalkng Terminators

This comprehensive overview of the Raymarine Evolution EV-100 Autopilot highlights its advanced features and capabilities, ensuring boat owners can make informed decisions when seeking reliable, high-quality equipment for their vessels.
