Stainless Centrifugal pump CEM MG INOX 90 l / m-24v

Wholesale price for Stainless Centrifugal pump CEM MG INOX 90 l / m-24v ,

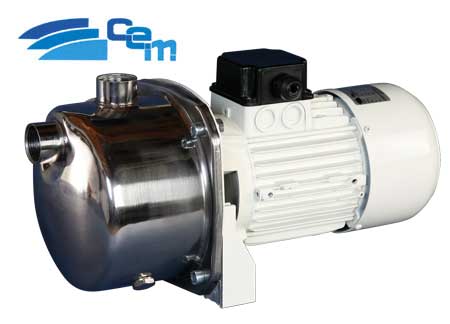

Stainless Steel Centrifugal Pump CEM MG INOX
This pump efficiently delivers pressurized water to onboard appliances or air conditioning units and is exclusively designed for use with freshwater.

Description and Usage
The CEM MG INOX is a self-priming electric centrifugal pump of the jet type, featuring a closed impeller that provides high suction capacity. It is widely used to supply pressurized water to various onboard appliances, including showers, kitchens, sinks, and bathrooms, as well as for air conditioning units, firefighting systems, and washing decks and chains. Automatic operation can be achieved by pairing the pump with small to medium-sized pressure tanks. The J-mini, J-INOX, and MG-INOX series are specifically designed for freshwater, while the JBR series can accommodate both freshwater and saltwater.

Construction Features

• Series J-mini / J-INOX / MG-INOX:
• Pump Body: AISI 304 Stainless Steel
• Shaft: AISI 316 (DC) / AISI 420 (AC)
• Diffuser and Venturi Tube: NORYL (Thermoplastic)
• Impeller(s): NORYL (Thermoplastic)
• Mechanical Seal: Ceramics – Graphite – NBR (special corrosion-resistant formulation)
• Series JBR:
• Pump Body: Bronze
• Motor Support: Bronze
• Shaft: AISI 316 Stainless Steel
• Diffuser and Venturi Tube: Polycarbonate
• Impeller: Special Brass Alloy
• Mechanical Seal: Ceramics – Graphite – NBR (special corrosion-resistant formulation)

Motor Specifications

• DC: Wound field and permanent magnet electric motor, 12/24V
• Protection: IP23
• Insulation Class: F
• Continuous Duty: S1
• AC: Induction electric motor, 230V single-phase (M) / 230-400V three-phase (T), 50Hz
• Protection: IP44-54
• Insulation Class: F
• Continuous Duty: S1

Operational Range

• Suitable for liquids free of solid impurities
• Liquid temperature range: +0 to +50 °C (up to 70 °C for the JBR series)
• Maximum suction depth: 9 m
• Maximum static pressure within the pump body: 6 bar

This comprehensive overview of the CEM MG INOX pump highlights its robust construction and versatile applications, ensuring boat owners can rely on it for their water supply needs.
