Technodrive TMC345 2.00

Wholesale price for Technodrive TMC345 2.00 ,

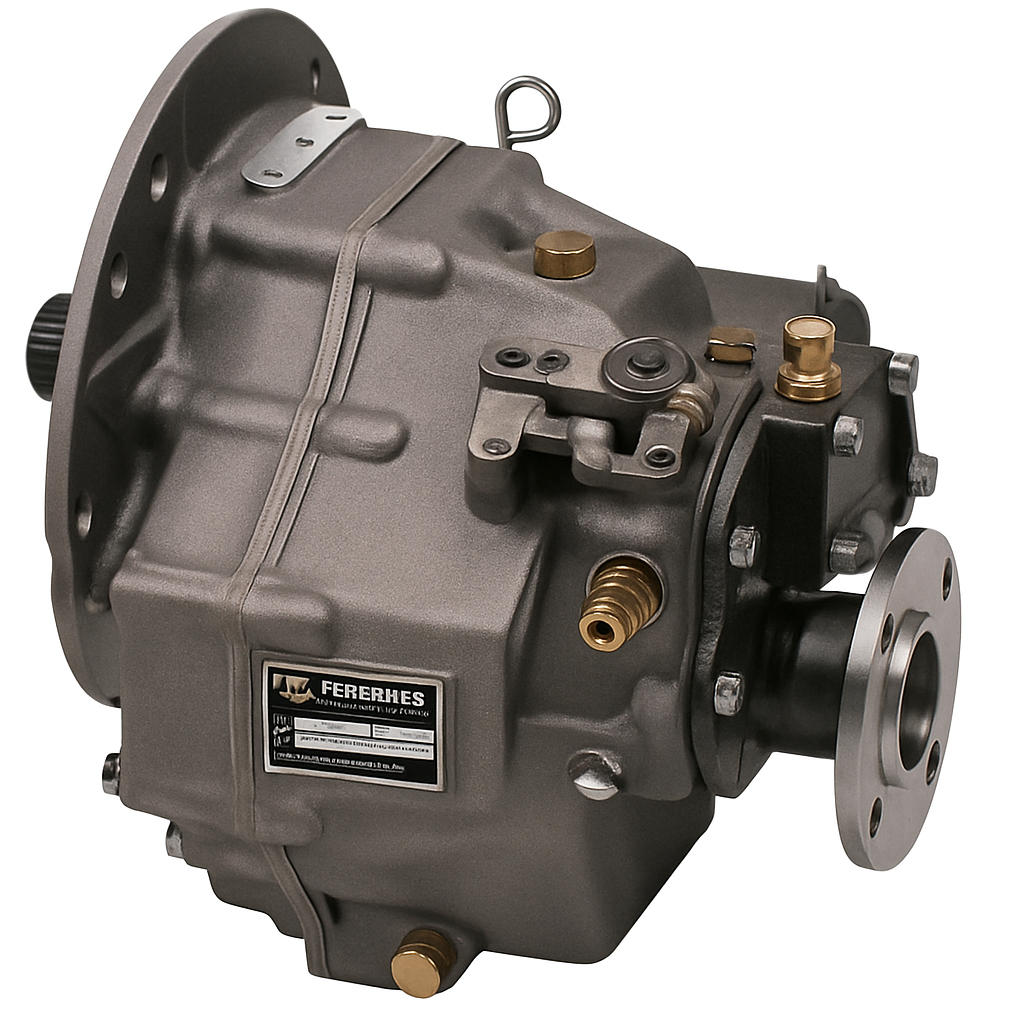

Hydraulic Transmission Technodrive TM345 for Marine Engines

The TM345 transmission boasts a sturdy aluminum alloy housing and features hydraulically-operated multi-disc clutches, enhancing efficiency for marine engines. Designed to withstand the harshest maritime conditions, this transmission ensures optimal power transfer with consistent gear ratios both forward and in reverse.

Specially designed clutches and gears guarantee durability and reliable performance, making it suitable for both professional and recreational marine applications.

Specifications:

• Engine Model: MINI-29
• Manufacturer: Technodrive
• Clutch Actuation: Hydraulic
• Output Reduction Ratio: 2.00:1

• Engine Model: MINI-33 | Reduction Ratio: 2.00:1
• Engine Model: MINI-44 | Reduction Ratio: 2.00:1
• Engine Model: MINI-55 | Reduction Ratio: 1.54:1
• Engine Model: MINI-62 | Reduction Ratio: 2.00:1
• Engine Model: MINI-74 | Reduction Ratio: 2.00:1
• Engine Model: SK-60 | Reduction Ratio: 1.54:1
• Engine Model: SM-82 | Reduction Ratio: 1.54:1
• Engine Model: SM-94 | Reduction Ratio: 1.54:1

Additional Specifications:

• Oil Type: SAE 15W40
• Oil Capacity: 1.6 L
• Maximum Operating Temperature: 95 ºC
• Weight: 25 Kg
• Transmission Type: RECTO

Reduction Ratios:

• Forward Ratio: 1.54:1 / Reverse Ratio: 1.54:1
• Forward Ratio: 2.00:1 / Reverse Ratio: 2.00:1
• Forward Ratio: 2.47:1 / Reverse Ratio: 2.47:1

The TM345 transmission is available without engine coupling bell housing, featuring a gear ratio of 2.00:1 for both forward and reverse operations.

Maximum Engine Output (Kw):

• Recreational Vessels: 2600 rpm → 76 Kw; 3200 rpm → 94 Kw
• Intermediate Applications: 2100 rpm → 47 Kw; 2500 rpm → 56 Kw
• Continuous Usage: 1800 rpm → 35 Kw; 2400 rpm → 47 Kw

Maximum Engine Speed: 4500 rpm
Maximum Engine Power: 110 Kw
Dry Weight: 25 Kg
Oil Quantity: 1.6 L

Optional Accessories (upon order confirmation):

• Bell SAE 3, SAE 4
• Gaskets 6.5″ – 7.5″
• Control Cable Support
• Heat Exchanger
• Throttling Valve
• Opposite Flange
• Electric Selector

Installer Notes:

It is crucial to ensure torsional compatibility to prevent damage to the transmission components. Incompatibility may cause noise during engine idle and potential damage to the transmission. Technodrive is not responsible for noise or damage in the inverter, gaskets, or other transmission components resulting from vibrations due to torsional incompatibility. The responsibility for conducting a compatibility assessment lies with the transmission system assembler.
