Uflex AV 4524 hatch lifters 24V 827mm

Wholesale price for Uflex AV 4524 hatch lifters 24V 827mm ,

Introducing the AV hatch lift, an advanced electromechanical system specifically designed for marine applications in recreational vessels. These lift systems allow for effortless opening and closing of large engine hatches, peak tanks, hatch beams, and other similar components. With just the push of a button, you can smoothly adjust the hatch from fully closed to fully open.

The internal self-locking feature ensures the hatch remains securely in place, preventing unwanted closures during your boating adventures.

These lightweight electric linear hatch lifts can be installed as standalone units, making them particularly suitable for accessing deck hatches and engine room doors, with the capability for partial openings as well.

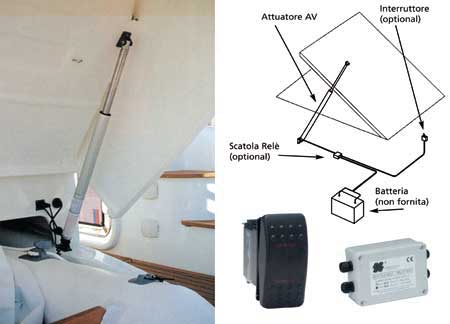

Featuring an IP65 waterproof rating and a stainless steel shaft, these lifts can handle a maximum load of 120 kg. For operation, they require a relay and a switch for both opening and closing actions. In the event of a power failure, an emergency function allows for manual operation.

Technical Specifications

• Customize the AV hatch lift according to your load needs, with configurations available for individual or dual cylinder setups for heavier loads.
• Maximum load for single installations: 1200N (120 kg / 265 lbs)
• Maximum load for dual installations: 2400N (240 kg / 529 lbs)
• Do not exceed the specified maximum load limits.
• Includes all essential mounting hardware.
• Equipped with a telescopic stainless steel cylinder for manual operation during emergencies.
• Features an automatic switch to prevent unintended overloads and an electronic stop in fully closed and fully open positions.
• IP65 rating for dust and moisture protection.
• Speed: 25 mm/second without load; 17 mm/second under maximum load.
• Current consumption for single installations: 10A at 12V, 5A at 24V.
• Current consumption for dual installations: 20A at 12V, 10A at 24V.
• External diameter: 48 mm (1.9 inches).

Available Models

1. Model: AV 301240671C
   Voltage: 12V DC
   Stroke Length: 300 mm (12”)
   Length A (Fully Closed Actuator): 677 mm (26.6”)
   External Diameter: 48 mm (1.9”)
2. Model: AV 302440672E
   Voltage: 24V DC
   Stroke Length: 300 mm (12”)
   Length A (Fully Closed Actuator): 677 mm (26.6”)
   External Diameter: 48 mm (1.9”)
3. Model: AV 451240582D
   Voltage: 12V DC
   Stroke Length: 450 mm (18”)
   Length A (Fully Closed Actuator): 827 mm (32.5”)
   External Diameter: 48 mm (1.9”)
4. Model: AV 452440583F
   Voltage: 24V DC
   Stroke Length: 450 mm (18”)
   Length A (Fully Closed Actuator): 827 mm (32.5”)
   External Diameter: 48 mm (1.9”)
5. Model: AV 601240584H
   Voltage: 12V DC
   Stroke Length: 600 mm (24”)
   Length A (Fully Closed Actuator): 977 mm (38.4”)
   External Diameter: 48 mm (1.9”)
6. Model: AV 602440585K
   Voltage: 24V DC
   Stroke Length: 600 mm (24”)
   Length A (Fully Closed Actuator): 977 mm (38.4”)
   External Diameter: 48 mm (1.9”)

Enhance your vessel’s accessibility and performance with the AV hatch lift, a reliable solution engineered for the marine environment. Experience the difference that quality and innovation can make on your boating experience.
