Uflex AV 6024 hatch lifters 24V 977mm

Wholesale price for Uflex AV 6024 hatch lifters 24V 977mm ,

AV Hatch Lift Elevators

The AV hatch lift elevators are specialized electromechanical devices designed for maritime use in recreational vessels. They enable effortless opening and closing of heavy hatches including engine compartments, bow tanks, hatch beams, and more. With just a push of a button, you can position the hatch from fully closed to fully open.

An internal self-locking mechanism securely holds the hatch in place, preventing accidental closures. These lightweight electric linear hatch lifts can be installed individually, making them perfect for accessing deck hatches and engine room doors, even in partially open positions.

Marine Benefits

• IP65 waterproof rating ensures protection against dust and water.
• Made from stainless steel, providing robust durability and corrosion resistance.
• Emergency manual operation in case of power failure.
• Easy installation with included mounting hardware.

Technical Details

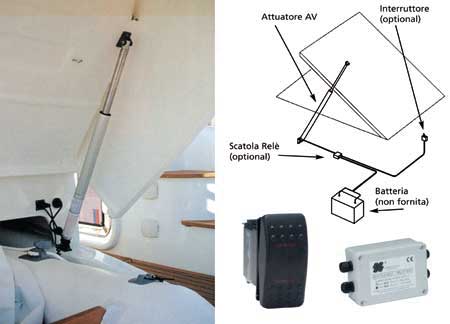

The AV hatch lift can be installed individually or as part of a dual cylinder system for heavier loads, depending on your lifting requirements.

• Maximum load for single installations: 1200N (120 kg / 265 lbs)
• Maximum load for dual installations: 2400N (240 kg / 529 lbs)
• Do not exceed maximum load limits.

The hatch lift features a telescopic stainless steel rod for manual opening during emergencies, a circuit breaker to prevent accidental overloads, and electronic stops at both closed and fully open positions.

Specifications

• Speed: 25 mm/second under load; 17 mm/second at maximum load
• Current draw for single installations: 10A at 12V, 5A at 24V
• Current draw for dual installations: 20A at 12V, 10A at 24V
• External diameter: 48 mm (1.9 inches)

Models

Invest in the AV hatch lift elevators for enhanced functionality, safety, and reliability aboard your vessel.
