Water Heater Quick B3 20lt

Wholesale price for Water Heater Quick B3 20lt ,

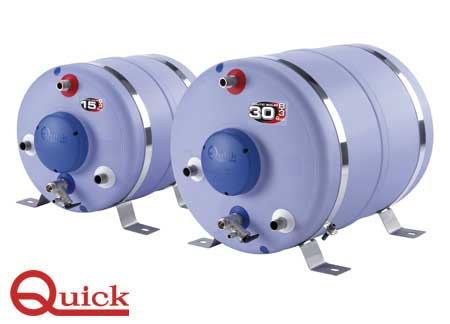

Nautic Boiler Model Rápido B3 Water Heaters

The Nautic Boiler Model Rápido B3 water heaters are meticulously designed for marine environments. Equipped with a 1200W-220V electric heating element, they are perfect for use at the dock or alongside a generator.

These heaters feature a unique wrap-around heat exchanger that efficiently captures heat from the engine’s cooling system. Built to meet potable water standards, each unit includes an anode to protect against electrolysis.

The outer casing is insulated and made from specialized composite material, while the tank is constructed of high-quality AISI 316 stainless steel. Each unit is backed by a three-year warranty and is recommended for use with a water premixer kit.

Features and Specifications

• Available in various sizes, the Rápido B3 series features a tank crafted from premium stainless steel with a wall thickness of 1.5 mm.
• Designed with durable foam insulation and a robust plastic casing, each heater is equipped with a safety/no-return valve and an electric heating element, available in either 500 watts or 1200 watts.
• The cylindrical Rápido B3 model utilizes an incoloy electric heating element along with an adjustable bi-thermostat for enhanced safety.
• Featuring a heat exchanger made of AISI 316L stainless steel, this model offers superior capacity compared to many competitors.
• The inner tank is made from 1.5 mm thick AISI 316 stainless steel and is argon gas welded to enhance corrosion resistance.
• The exterior is constructed from highly durable plastic composite material.
• This unit is insulated with high-density polyurethane foam, injected between the cover and tank to ensure excellent heat retention.
• The B3 model also includes adjustable metal brackets for flexible installation in tight spaces.
• Every unit comes with the water heater, mounting brackets, and four brass connections.

Key Benefits:

• Generates hot water using an electric heating element, including an adjustable bi-thermostat for safety.
• Heat exchanger with a large surface area for efficient heat transfer.
• Constructed with high-quality materials for durability.
• Relief/no-return valve for safe water drainage when not in use.

The Rápido B3 20lt water heater produces hot water from its electric heating element, which is equipped with an adjustable bi-thermostat for utmost safety. The heat exchanger is designed for an extensive exchange surface, ensuring superior efficiency.

Product Attributes:

• Diameter: 300 mm
• Electric Element Power: 500 W
• Length: 500 mm
• Shape: Round
• Tank Capacity: 20 L
• Weight: 8.1 kg

Specifications:

• Tank Material: Stainless Steel
• Thermal Insulation: Polyurethane Foam
• Exterior Coating Material: Composite
• Tank Pressure (operational testing): 800 kPa
• Maximum Working Pressure: 600 kPa
• Electric Element Voltage: 220 Vac ± 10%
• Electric Element Power: 1200 W (Model 12)
• Outlet Diameter: 1/2″

This comprehensive overview highlights the quality and features of our Nautic Boiler water heaters, ensuring you have all the essential information needed to make an informed decision.
