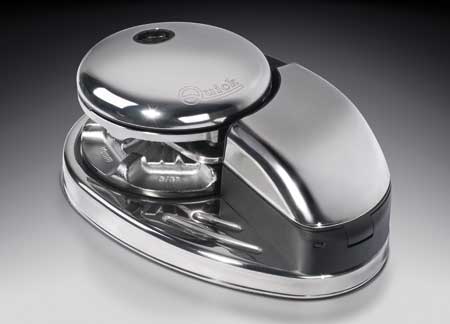

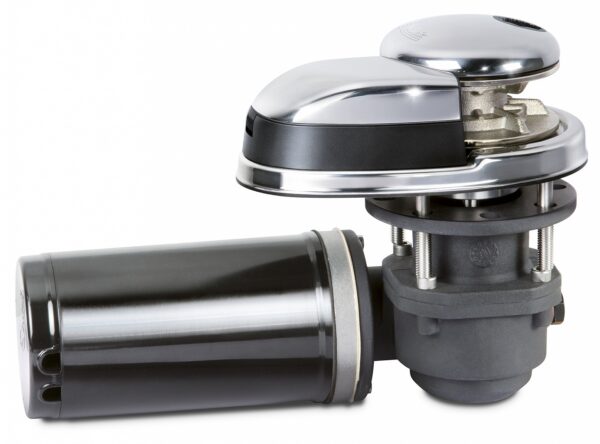

Windlass Quick DP1 500W 12v Low Profile – 6mm Chain

Wholesale price for Windlass Quick DP1 500W 12v Low Profile – 6mm Chain ,

Introducing the Prince DP1 512 Vertical, a superior Quick windlass designed for performance and durability. Crafted with robust bronze and stainless steel components, this windlass ensures reliable operation under demanding marine conditions.

Equipped with a chain counter sensor and a manual free-fall system, the Prince DP1 provides seamless functionality for safe and efficient anchoring. Its stainless steel base and housing feature a composite internal structure, ensuring longevity and strength.

The motor, rated IP67 for water protection, is paired with a sleek control box and handle for enhanced ease of use. The 316 stainless steel base is engineered with an integrated chain tube, designed to accommodate a 6 mm chain that meets DIN766 or ISO standards.

• Specifications:
• Motor Power: 500 W
• Input Voltage: 12 V
• Maximum Tension: 660 kg
• Working Load Limit: 200 kg
• Working Load: 65 kg
• Chain Speed at Working Load: 18.5 m/min
• Current Draw at Working Load: 80 A
• Cover Thickness: 20-30 mm
• Weight: 7.4 kg
• Gypsy Size: 6 mm

This windlass is specifically designed for boats ranging from 5 m to 8.5 m (16-28 feet). The Prince DP1 512 windlass is available with or without the drum, catering to diverse client needs while providing excellent reliability.

Choosing the Prince DP1 512 means investing in quality and performance for your sailing adventures. Experience the difference and elevate your marine safety with this exceptional windlass.
