Windlass Quick Genius GP2 500W 12v Free-Fall

Wholesale price for Windlass Quick Genius GP2 500W 12v Free-Fall ,

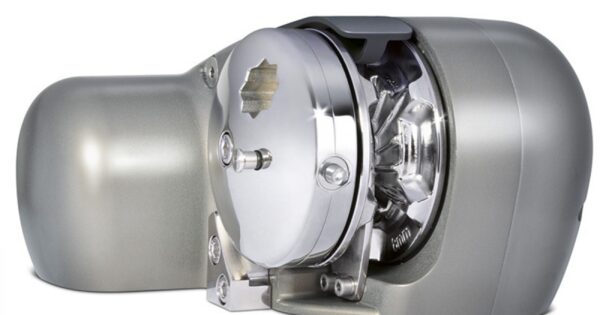

Introducing the Genius GP2 1500 Horizontal Windlass, designed to simplify anchor management with its automatic free-fall system. This windlass is built with a durable anodized aluminum base and casing, complemented by bronze and stainless-steel traction components.

Equipped with a chain counter sensor, a manual free-fall chain mechanism, and a pressure lever, it offers enhanced control over anchoring operations. The motor boasts an IP66 rating for waterproof protection, ensuring its longevity in marine conditions.

The complete package comes with a control box and a handle for easy operation.

Key Features:

• Anodized aluminum casing with a hard oxide finish for increased durability.
• Integrated rope/chain gypsy with a chain counter sensor for precise tracking.
• Pressure arm that improves operational efficiency.
• Compact and robust design allows for installation in tight spaces.
• Includes a relay box and gypsy (drum not included).
• Waterproof motors with an IP66 rating for reliable performance.

The Genius GP2 1500D variant includes both a gypsy and a drum, making it suitable for vessels between 6 and 10 meters (20 to 33 feet).

Specifications:

• Motor Power: 500 W
• Input Voltage: 12 V
• Maximum Pull: 680 kg
• Maximum Working Load: 250 kg
• Working Load: 85 kg
• Chain Speed under Load: 10 m/min
• Current Consumption under Load: 76 A
• Cover Thickness: 20-40 mm
• Gypsy Size: 6 mm

This windlass is an excellent choice for boat owners seeking a reliable and powerful anchoring solution.
