Quick Rider R3 1012 Low-Profile Anchor Winch

The Quick Rider R3 1012 is a low-profile anchor winch designed for durability and efficiency. It features high-quality bronze and stainless steel components, ensuring reliable performance for all your anchoring needs.

This model comes equipped with a chain counter sensor and a manual free-fall chain system for added convenience while anchoring.

Key Features:

• Base Material: Anodized aluminum round base for enhanced corrosion resistance.
• Drum Material: Stainless steel drum (AISI 316) for superior strength and longevity.
• Gypsy Specifications: The rope/chain gypsy, suitable for motors of 700 W and above, includes a chain counter sensor.
• Included Components: Comes with a relay box and a gypsy, available with or without a drum.
• Water Resistance: Waterproof motors rated IP67, ensuring reliable operation in wet conditions.

Specifications:

• Model: Rider R3 1012 – Gypsy Only
• Recommended Boat Size: Suitable for vessels ranging from 10 m to 13 m (33-43 feet)
• Drum: Not included
• Motor Power: 1000 W
• Input Voltage: 12 V
• Maximum Pulling Voltage: 1000 kg
• Maximum Working Load: 370 kg
• Working Load: 120 kg
• Chain Speed at Working Load: 20.4 m/min
• Current Consumption at Working Load: 140 A

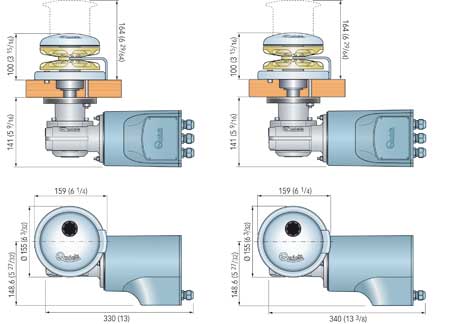

• Compatibility with Deck Thickness: 25-50 mm
• Weight: 17.1 kg
• Gypsy Size: 8 mm

This winch is an excellent choice for boat owners seeking a reliable and efficient anchoring solution.
