Windlass Quick Rider 500W-D 12v- with Drum -6mm chain

Wholesale price for Windlass Quick Rider 500W-D 12v- with Drum -6mm chain ,

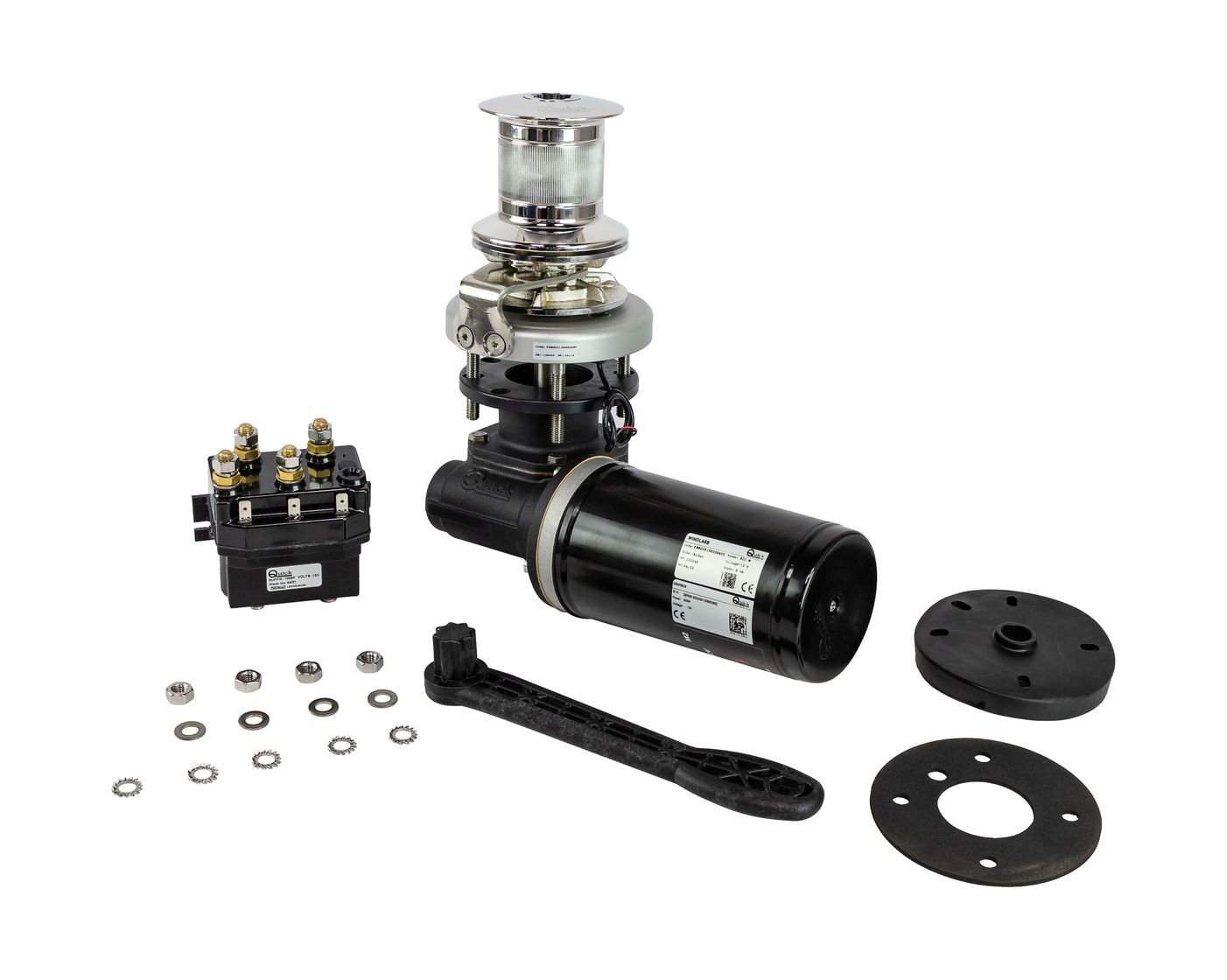

Introducing the Rider R1 512D Vertical Windlass

The Rider R1 512D is a dependable anchor winch designed with durable bronze and stainless steel components. This model features a chain counter sensor and a manual free-fall system, ensuring ease of use for all sailors.

Its anodized aluminum base and IP67-rated hermetic motor make it suitable for various marine environments. The windlass can be installed in any position—vertically or horizontally—and even within a chain locker, as it does not require a chain tube.

Key Features:

• Anodized aluminum round base
• Stainless steel drum (AISI 316)
• Gypsy for rope/chain (700 W and above) equipped with a chain counter sensor
• Includes a relay box and gypsy (available with or without drum)
• IP66 rated hermetic motors

The Rider R1 512D is specifically designed for boats ranging from 5 to 7 meters (16 to 23 feet) in length.

Specifications:

• Drum: Yes
• Motor Power: 500 W
• Input Voltage: 12 V
• Maximum Pull: 660 kg
• Maximum Working Load: 200 kg
• Working Load: 65 kg
• Chain Speed under Working Load: 18.5 m/min
• Current Consumption under Working Load: 80 A
• Cover Thickness: 20-30 mm
• Weight: 8.5 kg
• Gypsy Size: 6 mm

This windlass combines quality and functionality, making it an excellent choice for your sailing needs.
