Windlass Quick Rider R1 500W 12v Low Profile -6mm Chain

Wholesale price for Windlass Quick Rider R1 500W 12v Low Profile -6mm Chain ,

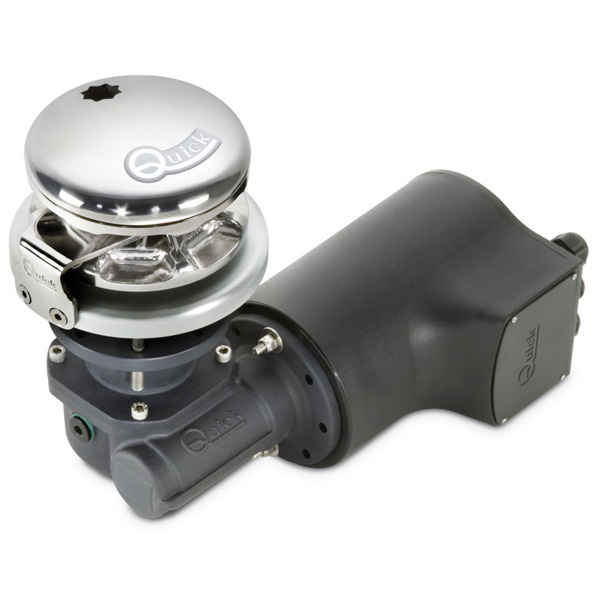

Introducing the Rider R1 512 Vertical Windlass

The Rider R1 512 Vertical Windlass is a reliable anchoring solution crafted from high-quality bronze and stainless steel components, ensuring optimal performance in marine environments.

Designed for ease of use, this windlass features a chain counter sensor and a manual free-fall system, making it perfect for both novice and experienced boaters.

Its anodized aluminum base and IP67 waterproof motor guarantee that it can withstand the rigors of various marine conditions.

The windlass can be installed in any orientation, whether vertical or horizontal, and can even fit within the chain locker as it does not require a chain pipe.

Key Features:

• Round anodized aluminum base
• Stainless steel drum (AISI 316)
• Rope/chain gypsy (for motors 700 W and above) equipped with a chain counter sensor
• Comes with a relay box and gypsy (available with or without drum)
• IP66-rated waterproof motors

The Rider R1 512 Gypsy is ideally suited for boats ranging from 5 to 7 meters (16 to 23 feet), making it versatile for different sizes of vessels.

Specifications:

• Drum: No
• Motor Power: 500 W
• Input Voltage: 12 V
• Maximum Pull: 660 kg
• Maximum Working Load: 200 kg
• Working Load: 65 kg
• Chain Speed at Working Load: 18.5 m/min
• Current Draw at Working Load: 80 A
• Cover Thickness: 20-30 mm
• Weight: 7.4 kg
• Gypsy Size: 6 mm

This windlass perfectly combines quality and functionality, making it an excellent choice for boating enthusiasts who demand reliability and ease of use on the water.
