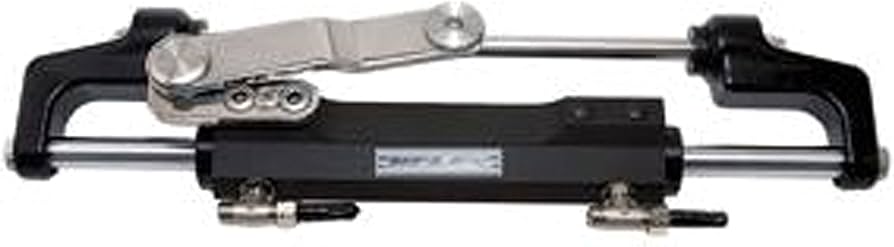

Hydraulic Cylinder Ultraflex UC128-OBF/2

Wholesale price for Hydraulic Cylinder Ultraflex UC128-OBF/2 ,

UC128-OBF Front Mount Cylinder is a precision-engineered front mount cylinder designed to provide consistent steering responses, ensuring that the number of wheel rotations remains identical on both port and starboard sides.

Key Features:

• Adjustable ‘boss’ type connections for straightforward installation.
• Durable stainless steel connection drilling (ULTRABOLT).
• Replaceable end caps for easy maintenance.

This UC128-OBF cylinder is equipped with a robust stainless steel rod, reliable seals, and link assemblies. It’s tailored for simple installation and is compatible with nearly all two-stroke and four-stroke outboard motors available on the market today.

It is recommended to use this cylinder with the helm models UP25, UP28, UP33, and UP39, along with pre-assembled hoses (Kit OB and Kit OB/R5). For configurations requiring two UC128-OBF cylinders, it is necessary to purchase a standard UC128-OBF cylinder (with the link arm on the starboard side) and a UC128P-OBF cylinder (with the link arm on the port side). Please refer to the coupling rods section to select the appropriate model for dual engine and dual cylinder setups.

Applications: The UC128-OBF front mount cylinder is not intended for installations where boat speeds exceed 55 mph (48 knots) or 65 mph (56 knots) in dual engine, dual cylinder, and counter-rotation applications. It is not designed for racing use.

Specifications:

• Volume: 120 cc (7.3 in³)
• Output Force: 450 kg (992 lbs)
• Internal Diameter: 35 mm (1.37″)
• Stroke: 185 mm (7.28″)
• High-Pressure Hose Connections: 3/8″
• Bleed Connection: Quick Connect DN5

Experience unmatched reliability and superior performance on your vessel with the UC128-OBF front mount cylinder, designed for marine enthusiasts who demand excellence.
