Windlass Quick Hector 1500W D with Drum- 12v – 10mm chain

Wholesale price for Windlass Quick Hector 1500W D with Drum- 12v – 10mm chain ,

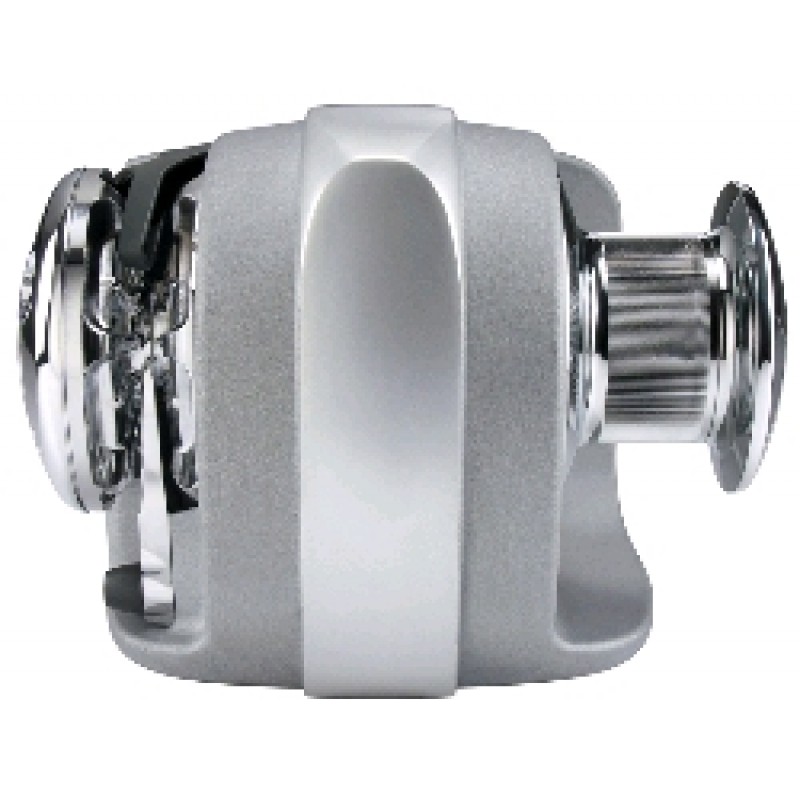

Héctor HC3 Horizontal Windlass

The Héctor HC3 Horizontal Windlass is engineered for efficient anchoring and features a quick rope and chain mechanism in a single gypsy. This robust windlass is constructed with an anodized aluminum base and housing, while the drum and traction components are made from bronze and stainless steel. It is equipped with an IP66 waterproof motor that includes a chain counter sensor and integrated solenoids, ensuring reliable performance in various marine conditions.

The windlass comes complete with a control box and handle, along with a manual free-fall chain system and an emergency manual lifting system for added security.

Key Features:

• Durable Construction: The aluminum base features a hard oxide coating, and the jacket is made from composite material (aluminum available upon request).
• Chain Counter Sensor: The rope/chain gypsy is equipped with a chain counter sensor for precise monitoring.
• Versatile Configurations: The Héctor is available in multiple configurations, including gypsy only, gypsy and drum on opposite sides, or drum on the gypsy.
• Pressure Arm: Designed for optimal performance.
• Easy Installation: Integrated solenoids facilitate simple installation.
• Emergency Systems: Includes both a manual lift system and a manual free-fall system.
• Waterproof Motors: IP66-rated motors ensure protection against water intrusion.

Specifications for Héctor HC3 1512D:

• Configuration: Right gypsy & left drum
• Recommended Boat Size: Suitable for vessels 12 m to 15 m (39-49 ft)
• Drum Position: Left side
• Motor Power: 1500 W
• Input Voltage: 12 V
• Maximum Pull: 1500 kg
• Maximum Working Load: 450 kg
• Working Load: 150 kg
• Chain Speed at Working Load: 17.8 m/min
• Current Draw at Working Load: 150 A
• Cover Thickness: 20-60 mm
• Weight: 25.4 kg
• Gypsy Size: 10 mm

The Héctor HC3 Horizontal Windlass perfectly blends quality, reliability, and ease of use, making it an excellent choice for boat owners searching for dependable anchoring solutions.
