Windlass Quick Hector 1500W – D with Drum- 24v- 10mm chain

Wholesale price for Windlass Quick Hector 1500W – D with Drum- 24v- 10mm chain ,

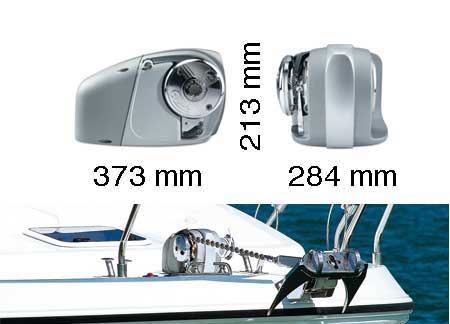

Introducing the Hector HC3 Horizontal Windlass, a sophisticated solution designed to manage ropes and chains seamlessly within a single gypsy. This deck-mounted anchor features a robust drum constructed from anodized aluminum and composite materials, while the drum and traction components are crafted from durable bronze and stainless steel.

The windlass is equipped with a hermetically sealed motor rated IP66, complete with a chain counter sensor and integrated solenoids for effortless operation. Included is a control box and a handle, ensuring user-friendly functionality.

The aluminum base boasts a hard oxide coating for enhanced durability, with an optional composite material jacket available (aluminum can be supplied upon request). The rope/chain gypsy is fitted with a chain counter sensor for precise monitoring of chain length.

Key Features

• Pressure arm to improve performance.
• Easy installation thanks to integrated solenoids.
• Emergency manual lifting system for peace of mind.
• Manual free-fall system allows for quick anchor deployment.
• Reliable operation in challenging conditions ensured by hermetically sealed IP66 motors.

For the Hector HC3 1524D model, the specifications are as follows:

• Gypsy Orientation: Right gypsy & left drum
• Drum Position: Left side
• Motor Power: 1500 W
• Input Voltage: 24 V
• Maximum Pull: 1500 kg
• Maximum Working Load: 550 kg
• Working Load: 185 kg
• Chain Speed under Load: 19.2 m/min
• Current Draw under Load: 85 A
• Deck Thickness: 20-60 mm
• Weight: 25.4 kg
• Gypsy Size: 10 mm

This windlass is meticulously designed to meet the needs of boat owners seeking reliable, high-quality equipment for their vessels. Experience seamless anchoring and unbeatable performance with the Hector HC3 Horizontal Windlass.
