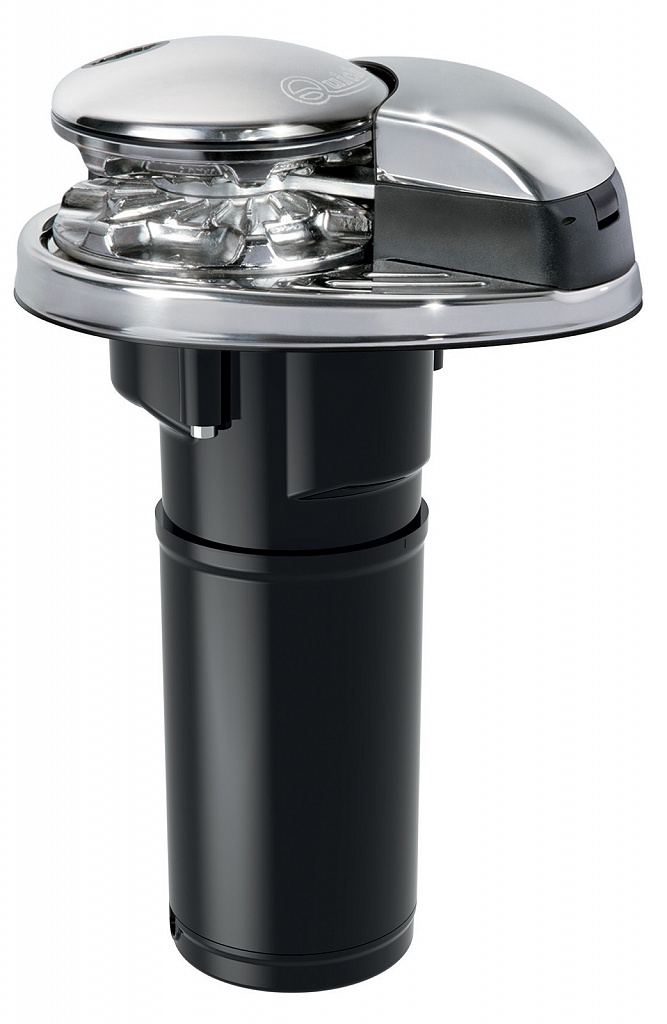

Windlass Quick Prince DP2E 800W 12v – 6mm Chain – Low Profile

Wholesale price for Windlass Quick Prince DP2E 800W 12v – 6mm Chain – Low Profile ,

Quick Prince DP2E 1000 Anchor Winch – Gypsy Only – 6mm Chain

This anchor winch is specifically designed for vessels ranging from 7 to 12 meters (23 to 40 feet). Constructed with robust traction components made of bronze and stainless steel, it ensures exceptional durability.

The winch features a chain counter sensor and a manual free-fall system. Its base and housing are crafted from anodized aluminum, complemented by a waterproof IP67 motor, providing reliable performance in various marine conditions. Installation is straightforward and can be performed from the top.

The package includes a control box and a handle for your convenience.

Key Features:

• Stainless steel 316 base and anodized aluminum epicyclical gearbox.
• Rope/chain gypsy with a chain counter sensor.
• Inspection cover and pressure arm.
• Relay box and gypsy (available with or without drum).
• Waterproof IP67 motor.

Specifications:

• Drum: No
• Motor Power: 800 W
• Input Voltage: 12 V
• Maximum Pull: 820 kg
• Maximum Working Load: 290 kg
• Working Load: 95 kg
• Chain Speed at Working Load: 15.2 m/min
• Current Draw at Working Load: 84 A
• Cover Thickness: 20-40 mm
• Weight: 9.5 kg
• Gypsy Size: 6 mm

This winch offers the perfect blend of quality and functionality, making it an excellent choice for your boating needs.
