Windlass Quick Prince DP3 1000W 12v Without Drum – 8mm Chain

Wholesale price for Windlass Quick Prince DP3 1000W 12v Without Drum – 8mm Chain ,

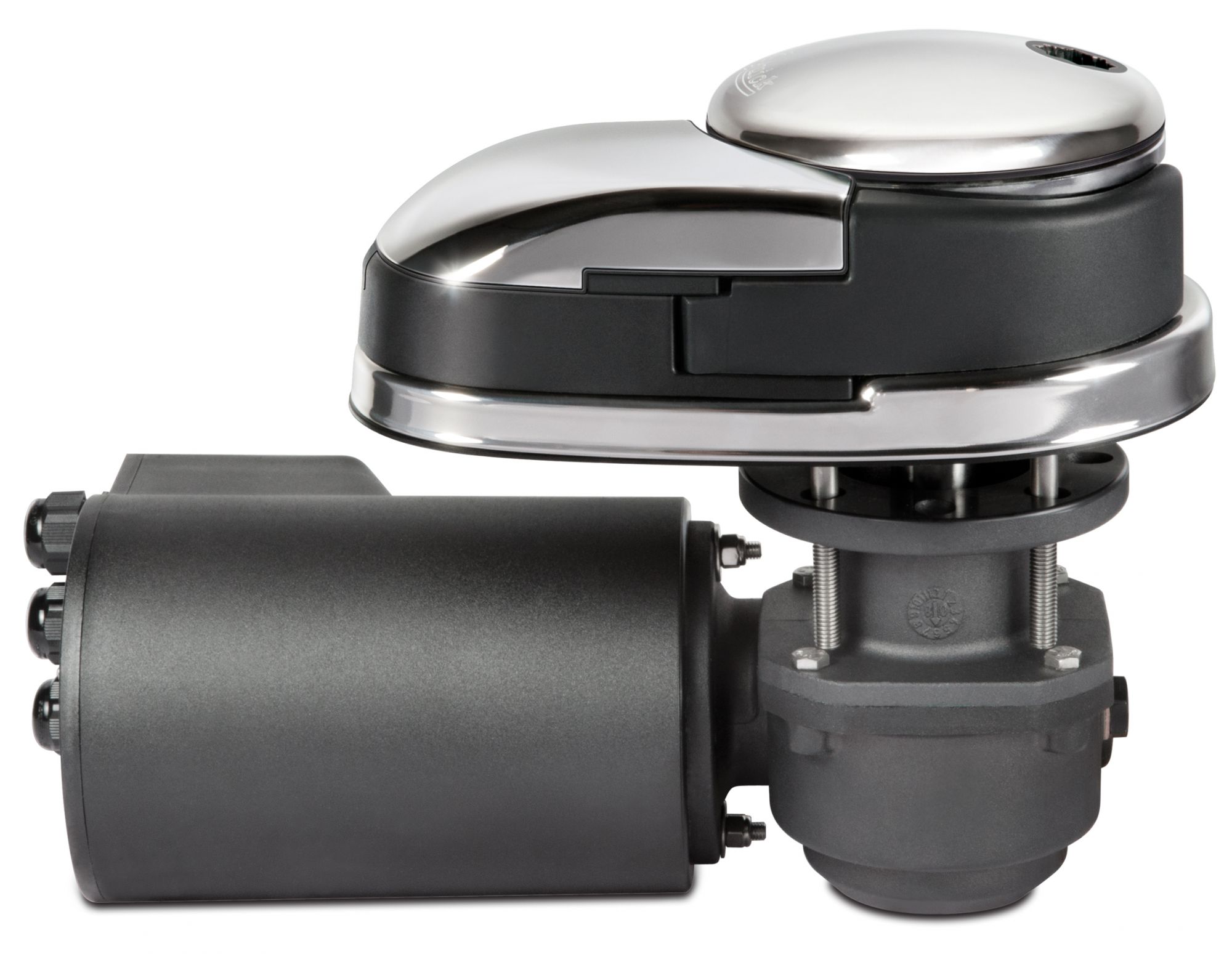

The low-profile anchor windlass Prince DP3 1012 boasts a robust construction with traction components made of bronze and stainless steel. This advanced windlass is equipped with a chain counter sensor and a manual chain free fall system, ensuring effortless operation on board.

For added safety, it includes an emergency manual lifting system and a pressure lever. The unit is delivered complete with a control box and handle, all mounted on a durable stainless steel base and housing. The motor is rated IP67, providing excellent waterproof protection.

Featuring a 316 stainless steel base that integrates a chain tube, the windlass is designed to meet the demands of marine use. The rope/chain gypsy is fitted with a chain counter sensor and comes with a relay box. Depending on your requirements, the gypsy can be supplied with or without a drum. The motor also maintains an IP67 waterproof rating.

The Prince DP3 1012 gypsy is suitable for vessels ranging from 10 to 14 meters (33 to 46 feet) in length.

Specifications:

• Drum: No
• Motor Power: 1000 W
• Input Voltage: 12 V
• Maximum Pull: 1000 kg
• Maximum Working Load: 370 kg
• Working Load: 120 kg
• Chain Speed at Working Load: 20.4 m/min
• Current Draw at Working Load: 140 A
• Cover Thickness: 25-50 mm
• Weight: 18.1 kg
• Gypsy Size: 8 mm

This windlass is designed for reliable performance and durability, making it an excellent choice for boat owners seeking high-quality marine equipment.
